1500 lb Dual Wheel Trailer Jack with 8 in Wheels | LF965-2010BS

Authoritative LF965-2010BS Product Data

The supplied specification publishes one 1,500 lb capacity field. This page does not invent separate lift and support ratings.

The Lower Yoke Uses Two Wheels, Not a Single Caster

The authoritative data gives an 8 in wheel diameter, while the real LF965-2010BS image confirms a dual-wheel assembly. Two contact tracks can change how the tongue load meets the floor or ground compared with a single-wheel jack.

That does not mean every dual-wheel jack will roll easily on every surface. Wheel material, width, bearing design, supported load, slope, gravel depth, thresholds and steering geometry all affect manual movement.

For the practical limits of jack-wheel positioning, see GOODIN's guide to moving a trailer in a tight garage.

Actual dual-wheel assembly from the GOODIN product archive.

Reserve Lateral Crank Space Before Final Mounting

The sidewind crank requires a clear operating arc beside the jack. A tongue toolbox, winch plate, body panel, coupler accessory or other permanent hardware can create interference even when the jack itself fits the frame.

When the jack is one part of a wider trailer build, GOODIN's Utility Trailer Upgrade List helps coordinate jack, toolbox, winch and other tongue-area additions before holes or brackets are finalized.

The Mounting Plate and Locking Structure Need Model-Specific Verification

Actual bracket and mounting-plate detail.

The product images show a side-mounted plate, pivot interface and locking/pin structure. This supports a swivel-style storage arrangement, but the source does not publish hole spacing, fastener size, frame fit range or an approved weld/bolt procedure.

OEM and replacement buyers should use the current LF965-2010BS drawing for the exact bracket geometry instead of treating another 1,500 lb swivel jack as dimensionally interchangeable.

10 in Travel from 12.4 in Bracket Height to 22.4 in Extended Height

These three values form the published height geometry for LF965-2010BS. They should be compared with the same measurement reference on the trailer drawing or physical installation.

Black Powder-Coated Outer Tube + Zinc-Plated Inner Tube

Those finish descriptions come directly from the authoritative product data and are consistent with the actual product appearance.

No salt-spray duration, coating thickness, marine certification or universal corrosion-life claim is added. Wet or salt-exposed programs should define their environmental requirements separately in the RFQ.

Seven Checks Before Approving LF965-2010BS

Questions Specific to LF965-2010BS

Production Visibility for OEM and Distributor Buyers

These photographs show GOODIN's actual trailer-jack production environment and manufacturing activity.

GOODIN Trademark Registrations in Overseas Markets

GOODIN maintains trademark registrations in selected overseas markets. The certificate images are intentionally privacy-protected.

Australia

United Kingdom

European Union

Confirm Wheel, Bracket and Height Geometry Together

Send GOODIN the expected vertical load, trailer-frame drawing, mounting requirements, required coupling/support heights, sidewind clearance, swivel-storage envelope, ground conditions, environment, quantity and destination market. Non-standard programs can also review customized trailer jack options.

Trailer-Front Support with a Dual-Wheel Base for Controlled Local Movement

LF965-2010BS fits compatible trailer applications that need a 1,500 lb-capacity manual support jack, sidewind access, 10 in travel and a dual-wheel lower assembly with an 8 in wheel-diameter specification.

The dual wheels may support low-speed local positioning when the trailer and surface permit, but wheel count alone does not determine how easily a loaded trailer will move.

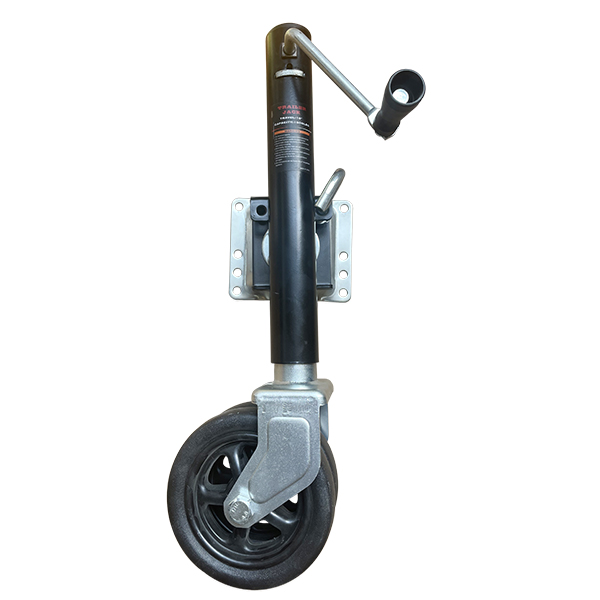

Real LF965-2010BS product reference for application matching.

Use the Wheels for Short, Controlled Alignment—Not as Road-Running Wheels

Wheel-equipped tongue jacks can be useful while coupling, uncoupling or aligning a trailer in storage. The practical limit depends on tongue load, trailer axle resistance, slope, surface condition, wheel construction and the force available to the operator.

For a more complete comparison of wheel-equipped jacks, dollies and powered movers, see GOODIN's tight-garage trailer mobility guide.

Two 8 in Wheels Change the Footprint, but the Surface Still Controls the Result

The real product image confirms two wheels in one lower yoke. Compared with a single narrow caster, a dual-wheel assembly creates a different contact footprint; however, the current source does not publish wheel width, tyre material, bearing type or dynamic moving-load rating.

Actual dual-wheel base used to review ground and clearance conditions.

Coordinate the Jack with Tongue-Mounted Accessories

The sidewind handle needs a usable lateral arc after the jack is installed. Toolboxes, winches, batteries, coupler hardware and body panels should be checked in the final assembly—not only on an empty trailer frame.

GOODIN's Utility Trailer Upgrade List is useful when several tongue-area upgrades must share the same limited space.

Check the Complete Path of the Jack and Both Wheels

Because the product uses a pivoting side mount, the stored envelope includes the jack tube, handle, yoke and both wheels. The assembly must rotate without contacting the frame, coupler, body, wiring or other permanent hardware.

The locking structure must also engage positively in the positions defined by current GOODIN product documentation.

Match 12.4–22.4 in to the Actual Coupling and Support Positions

The published 12.4 in bracket height, 10 in travel and 22.4 in extended height should be checked against the same installed measurement reference on the target trailer.

A wheel-equipped jack that cannot reach the required hitch-height window is not a correct fit even when capacity is adequate.

The 1,500 lb Jack Rating Does Not Approve an Arbitrary Trailer Bracket

The jack body, pivot plate, attachment method and local trailer structure carry the working load together. The visible multi-hole plate confirms the mounting architecture but does not provide engineering dimensions.

Use the model-specific drawing for hole spacing, fasteners or weld requirements and for any frame-size limits.

LF965-2010BS is a manual trailer-front support jack with wheels. The wheels are for compatible low-speed positioning while uncoupled; they are not road-running trailer wheels. The source also does not define a separate dynamic moving-load rating, so do not treat the 1,500 lb capacity as a guaranteed manual-maneuvering load.

Information to Send Before Approval

Provide actual jack-position load, trailer/frame drawing, mounting method, required coupling/support heights, sidewind clearance, swivel-storage envelope, ground surface, intended manual-positioning distance, operating environment, quantity and destination market.
