Low Profile Aluminum Truck Tool Box, 900 × 330 × 180 mm | GDA013

GDA013 Is Not a Longer Version of GDA012

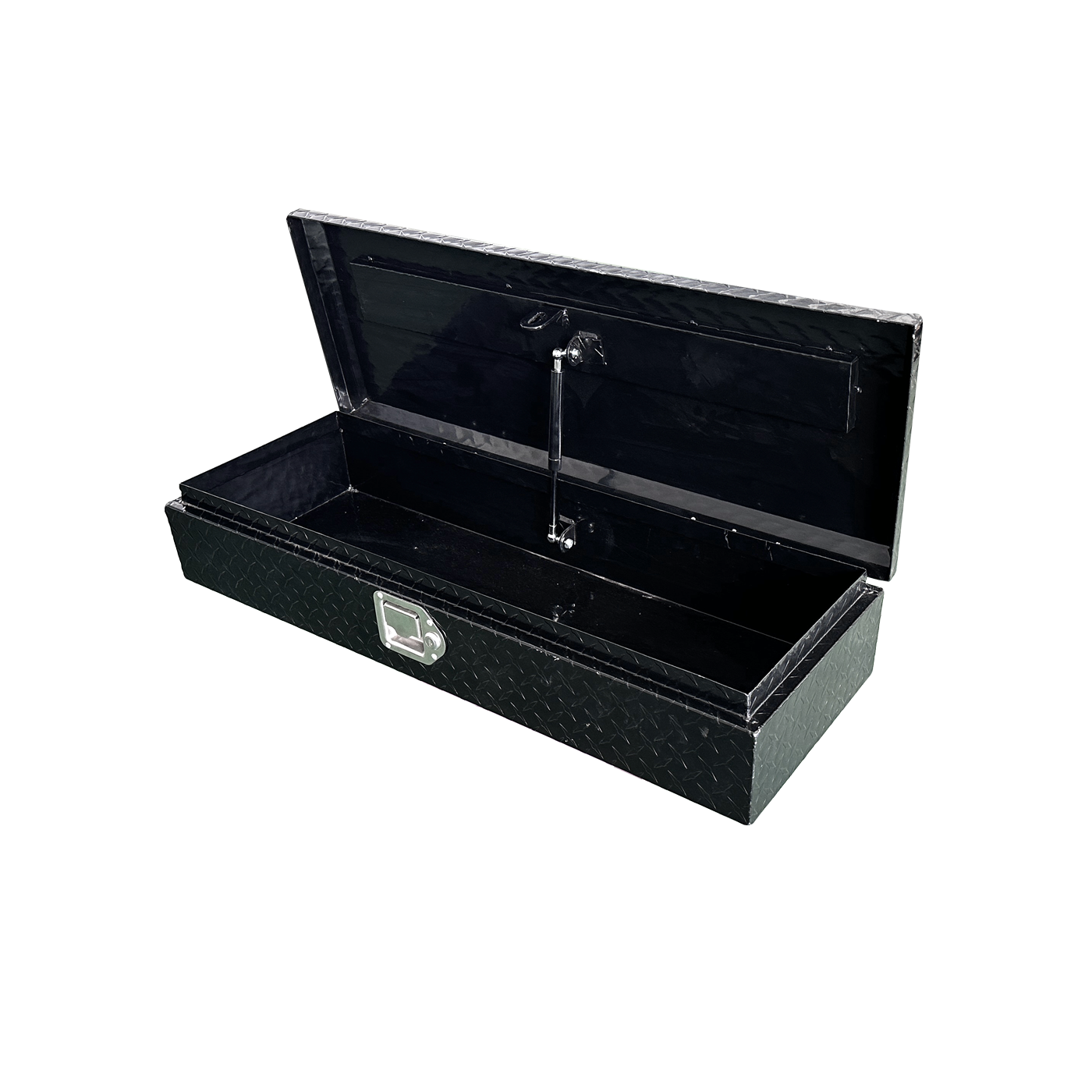

Both models use black checker / diamond-plate exterior construction, top access, a recessed front latch and visible gas-strut support. Their proportions are different: GDA013 is 900 × 330 × 180 mm at 4.8 kg, while GDA012 is 765 × 335 × 245 mm at 6 kg.

That makes GDA013 135 mm longer, 5 mm shallower in depth and 65 mm lower in height. Do not infer the 1.2 kg net-weight difference from alloy, wall thickness or reinforcement; those variables are not published.

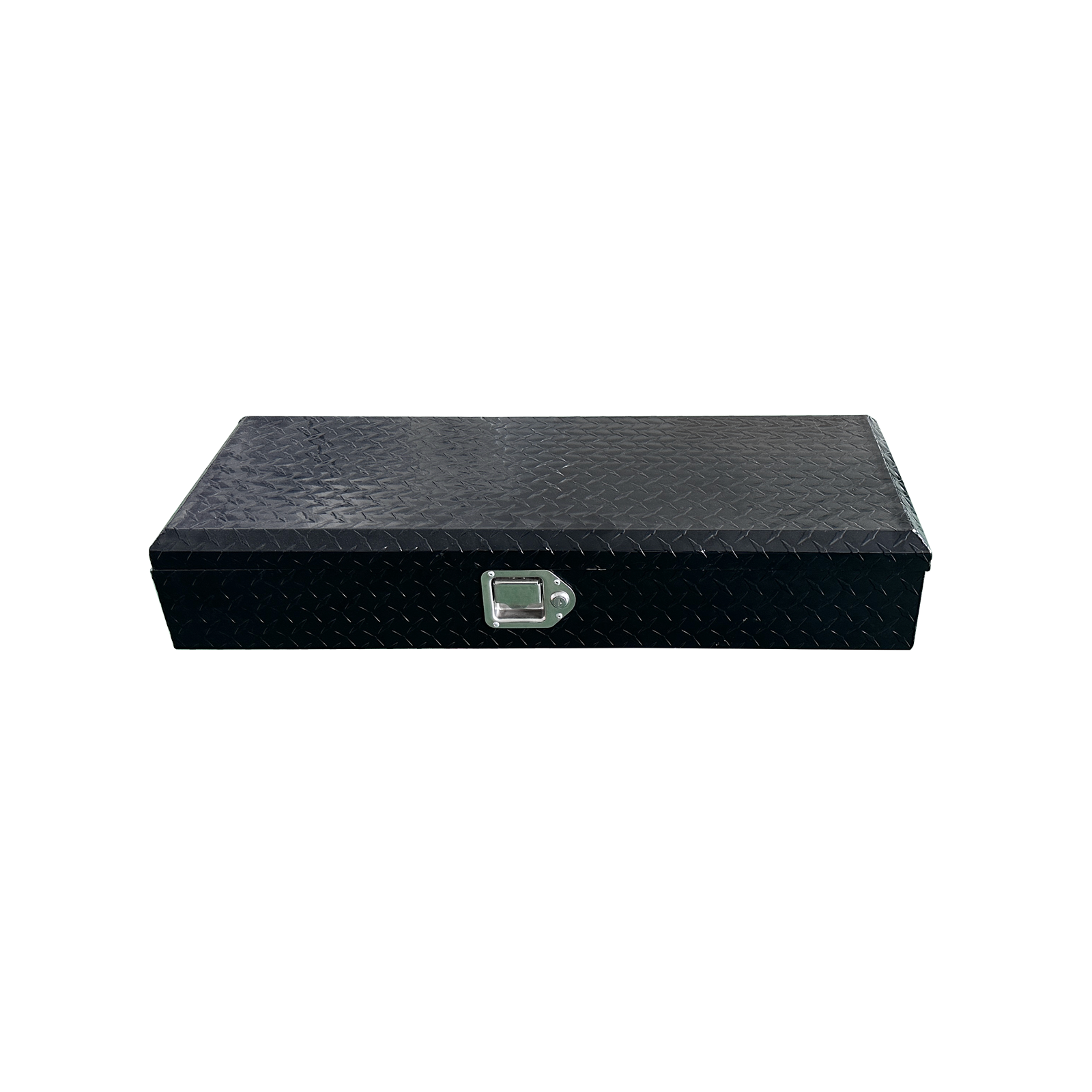

The Front Latch Sits inside the Shallow Body Profile

A recessed paddle-style central front latch is clearly visible on the exact product, with a lock cylinder integrated into the closure hardware.

Key quantity, keyed-alike options, replacement-cylinder compatibility and any security rating are not supplied. Confirm those fields before fleet or distributor standardization.

Use the 900 × 330 × 180 mm Envelope to Screen the Actual Inventory

Low overall height can reduce the space occupied above the installation surface, but it also limits the height available for stored items. The current data does not publish internal dimensions or liters.

Before approval, compare representative tools and parts with the usable internal height and lid hardware. The external 180 mm figure is not an internal-clearance guarantee.

Separate Empty-Box Mass from Loaded Mass and Freight Dimensions

The published N.W. is 4.8 kg before stored tools, parts or mounting hardware are added. Any handling or attachment review should use the realistic loaded mass.

The 920 × 350 × 200 mm package is +20 mm on each published product dimension. Treat the difference only as a logistics envelope—not as wall thickness, foam thickness or installation clearance.

Questions to Resolve Before a GDA013 Program

Production Visibility for Low-Profile Storage Programs

For B2B sourcing, verify the current production specification together with visible lid hardware, finish, dimensions and the supplier process behind GDA013.

Trademark Registration Across Key Markets

GOODIN maintains trademark registrations in multiple markets as part of its international brand and distribution presence.

Australia

United Kingdom

European Union

Trademark registration indicates brand ownership/registration status and does not constitute product-performance certification, regulatory approval or compliance certification for GDA013.

Use GDA013 Where a 180 mm Exterior Height Solves a Real Packaging Constraint

The application value of GDA013 is its 900 mm long × 330 mm deep × 180 mm high envelope—not a claimed universal mounting position.

Evaluate the intended truck, trailer, service body, rack or workshop location by the actual available envelope, surrounding equipment and access path. The box should only be called a truck-bed, side, underbody or trailer-mounted box if the final installation design verifies that role.

Match Long / Low Storage to the Actual Tool and Parts Mix

A low-profile box can be efficient for items that benefit from horizontal spread, but it can also be a poor fit for tall bottles, upright power tools or stacked components.

Measure representative inventory and confirm usable internal dimensions. The current record does not publish internal liters, internal clear height or payload.

Start at 4.8 kg, Then Add the Inventory and Attachment System

GDA013 is 4.8 kg empty. For permanent installation or repeated handling, the relevant value is the fully loaded box plus brackets, fasteners and any supporting structure.

No stored-load rating or lifting-handle rating is published, and no external carrying handle is visible in the current image set.

Keep the Recessed Front Latch Reachable after Installation

The latch sits at the center of the long front face. Leave enough approach space for opening, closing and key access rather than positioning another panel, cargo item or bracket directly in front of it.

For fleet programs, confirm keying requirements separately; the current product data does not publish keyed-alike options or security ratings.

Design the Mounting Load Path from the Final Location—not from Generic Toolbox Assumptions

The current GDA013 image set does not verify mounting brackets, drilled attachment points or reinforced structural zones. A permanent installation therefore needs a location-specific attachment design.

Verify loaded mass, support spacing, vibration environment, fastener access and surrounding structure before production approval.

Convert “Black Powder Coat” into the Program’s Required Finish Criteria

If the box will be exposed, define the required color/gloss tolerance, pretreatment, film thickness, adhesion, corrosion, UV or abrasion criteria in the RFQ. The current GDA013 specification publishes the finish type but not those test values.

Choose GDA013 for Low Height—not Simply for Black Finish or Diamond Plate

Use the GOODIN Tool Box range to compare GDA013 with GDA009 black-finish storage, GDA011 diamond-plate construction, GDA012 chest organization and other verified formats. GDA013's distinctive selection variable is its 900 × 330 × 180 mm low-profile envelope.

Send the Available Envelope, Inventory and Mounting Concept Together

Provide the proposed location, available closed and open-lid clearance, representative stored items, expected loaded mass, attachment concept, lock/key requirement, aluminum alloy/thickness target if specified, powder-coat performance requirement, quantity and destination market.

Use GOODIN's contact / RFQ channel for current GDA013 material, gas-strut, lock, internal-size and mounting confirmation.
