8000 lb Sidewind Square Trailer Jack | LF971-701513

Authoritative LF971-701513 Product Data

The supplied specification publishes one 8,000 lb capacity value and does not distinguish lift capacity from stationary support capacity.

Side Crank Access Is the Key Difference from the LF971B Topwind Variant

The sidewind crank moves the operator's working envelope to the side of the jack. Nearby trailer rails, toolboxes, frame members, hydraulic components or bodywork therefore need to leave enough lateral clearance for the handle throughout its full arc.

Buyers comparing crank styles, capacity and installation geometry can use GOODIN's Trailer Jack Selection Guide as the next-step reference.

15 in Travel from a 13 in Bracket Height to 28 in Extended Height

The 13 in bracket height and 28 in extended height should be compared with the actual installed measurement reference on the trailer. A high capacity does not compensate for a height range that misses the required coupling or support positions.

Outer, Mid and Inner Tubes Are All Specified as Zinc Plated

The current GOODIN specification explicitly calls out zinc plating for all three tube stages. This can be published as a verified finish statement.

The page does not convert zinc plating into a specific salt-spray duration, marine certification or universal corrosion-life claim unless those requirements are separately documented for the order.

Use the 8,000 lb Rating as One Part of the Trailer Support System

LF971-701513 belongs to the higher-capacity square-jack class visible in equipment, agricultural, cargo and commercial trailer applications. The jack rating, trailer-side frame, attachment method and local reinforcement still have to be matched together.

For broader operating conditions and heavy-trailer use cases, continue to GOODIN's Utility & Heavy-Duty Trailer Application Guides.

Real Images Show a Large Footplate and Lower Locking Hardware

The archived product images visibly show a broad footplate and pin/chain hardware at the lower section. These visual facts can support fit and inspection discussion, but the current text specification does not state an additional drop-leg travel value.

Accordingly, this page does not borrow the 13–14 in adjustable drop-leg figures that appear on some competing 8,000 lb square jacks.

Six Items to Confirm Before Approval

Questions Specific to LF971-701513

Production Visibility for OEM and Distributor Buyers

These photographs show GOODIN's actual production environment and trailer-jack manufacturing activity.

GOODIN Trademark Registrations in Overseas Markets

GOODIN maintains trademark registrations in selected overseas markets. The current certificate images are intentionally privacy-protected.

Australia

United Kingdom

European Union

Confirm LF971-701513 Against Your Heavy-Trailer Program

Send GOODIN the expected vertical load, mounting drawing, required operating heights, side-crank clearance, footplate conditions, environment, quantity and destination market. Importers comparing sourcing conditions can also review GOODIN's Regulations & Trade Insights.

Higher-Capacity Square Support Where Side Crank Access Fits the Trailer Layout

LF971-701513 fits compatible utility, equipment, agricultural, cargo and other heavy-trailer programs that need an 8,000 lb-capacity manual square jack with sidewind operation and a 13–28 in published height window.

Application approval should combine real supported load, trailer-side structure, required height, side-crank clearance, ground conditions and service environment.

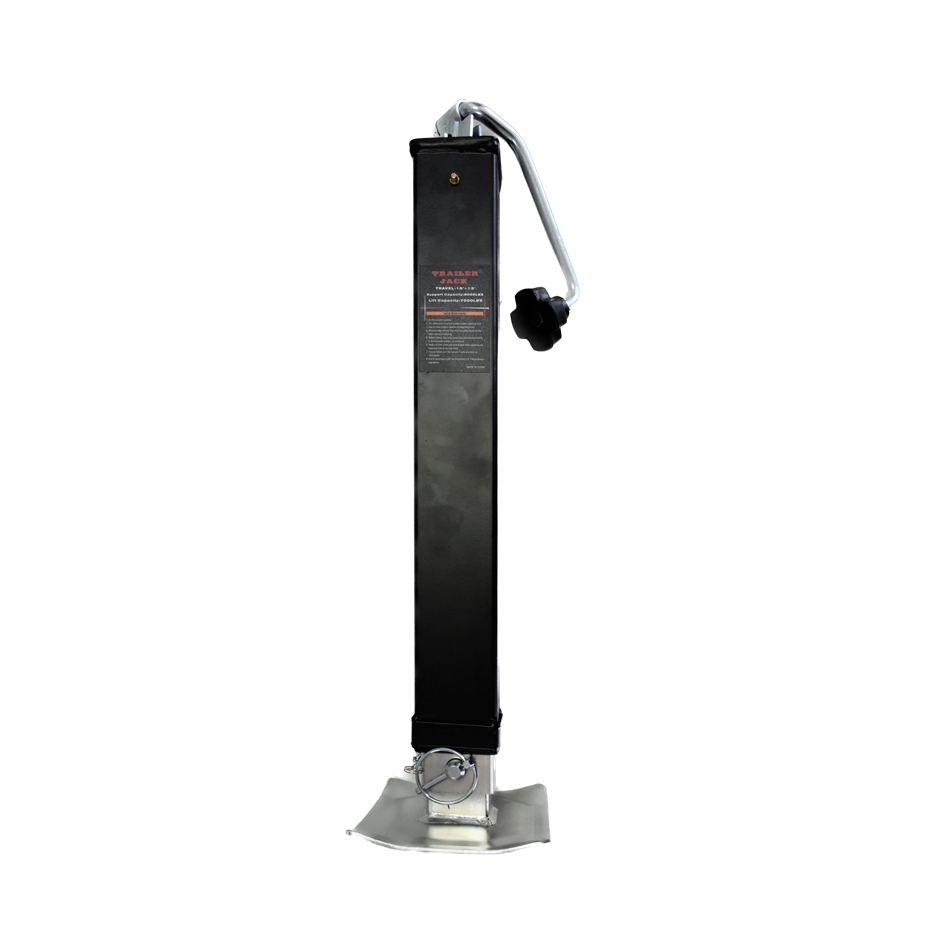

Real LF971-701513 reference for heavy-trailer support and installation review.

Coupling Height, Uncoupled Front Support and Controlled Vertical Adjustment

Use LF971-701513 Where Lateral Crank Space Is Available

The sidewind handle needs enough room beside the jack for repeated operation. This can be preferable to topwind in some trailer layouts, but only when adjacent frame members, boxes, tanks or accessories do not interfere with the crank.

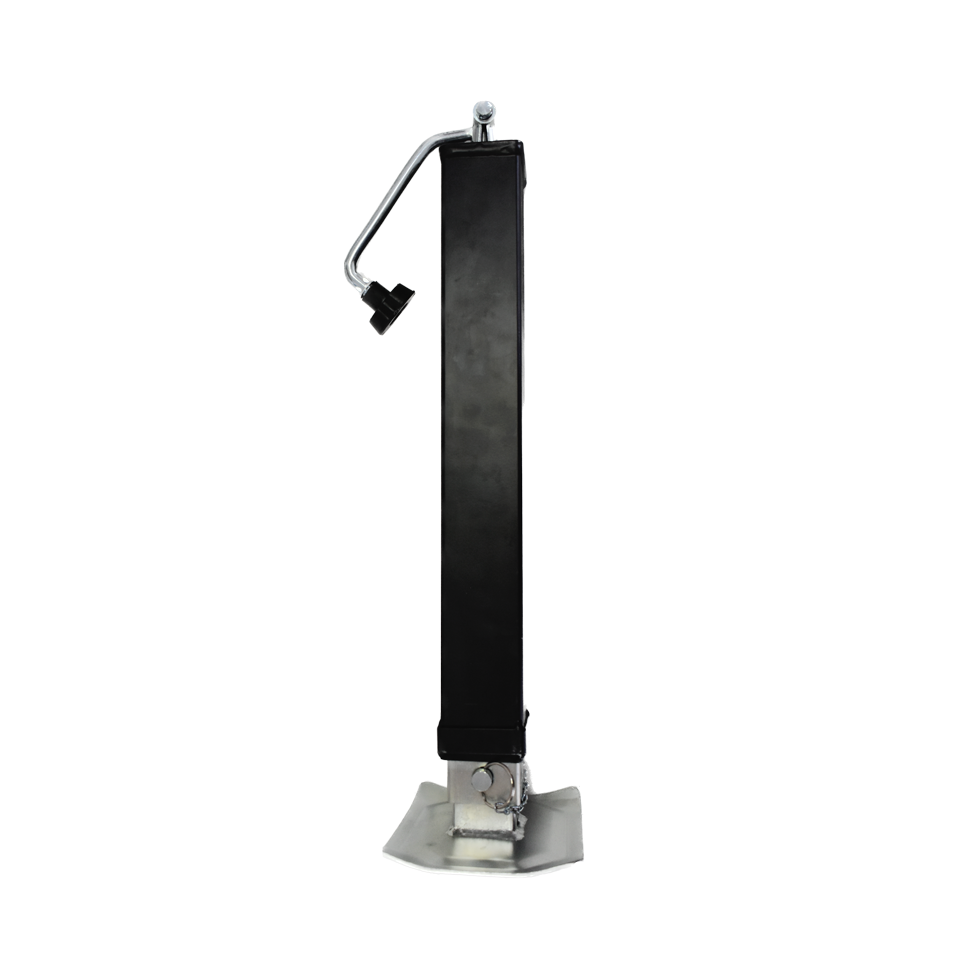

Sidewind profile used to review lateral operating clearance.

Match the 13–28 in Window to Real Coupling and Support Positions

The published 13 in bracket height, 15 in travel and 28 in extended height should be checked against the same measurement reference on the trailer drawing or physical installation.

Do not infer additional adjustment from visually similar competing jacks unless GOODIN's current specification separately confirms it.

An 8,000 lb Jack Does Not Automatically Create an 8,000 lb Mounting Point

The jack, attachment method, local frame section and any reinforcement must carry the working load together. OEM review should therefore start with the real supported load and the trailer-side structural drawing, not only the catalog capacity.

GOODIN's Trailer Jack Selection Guide provides broader capacity and installation-selection context.

Large Footplate Area Still Requires a Stable Surface

The support point should remain firm under the actual vertical load. Soft soil, loose fill, slope or an uneven edge can change ground pressure and jack alignment, so load-spreading practices should follow the trailer and site procedure.

Treat Zinc Plating as a Defined Finish, Not a Universal Exposure Rating

Outer, mid and inner tubes are all specified as zinc plated. For wet, salt-exposed or long-term outdoor programs, the RFQ should still define coating process, maintenance expectations and any required acceptance test.

Heavy-trailer application planning can continue through GOODIN's Utility & Heavy-Duty Trailer Application Guides.

LF971-701513 is a manual trailer support jack. It is not automatically a vehicle service jack, trailer stabilizer or general-purpose lifting device merely because the published capacity is 8,000 lbs. The intended load path and permitted operation must be defined by the product and trailer application.

Information to Send Before Approval

Provide expected supported load, trailer frame and mounting drawings, required heights, side-crank clearance, ground conditions, service environment, quantity and destination market.
