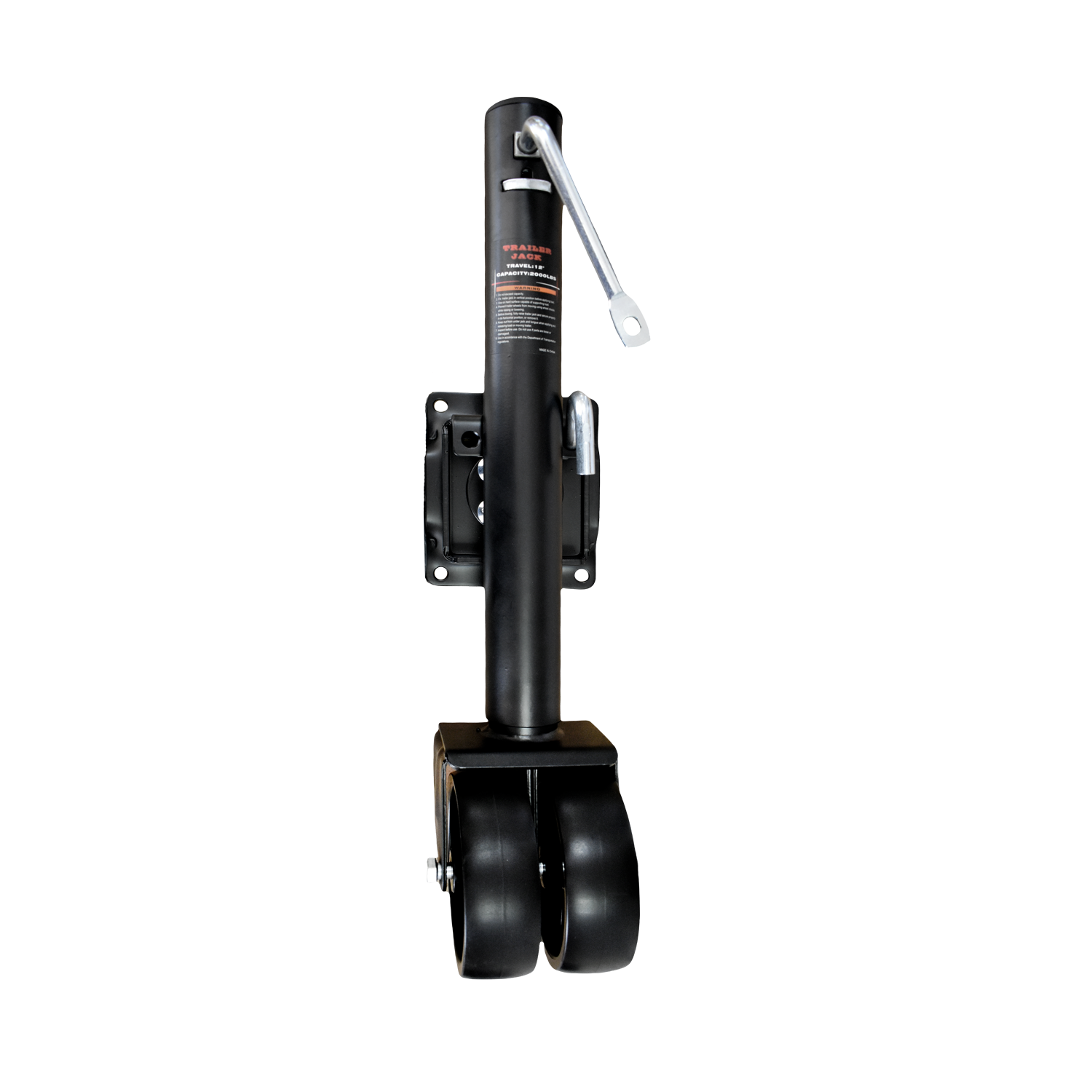

2000 lb Sidewind Trailer Jack with 6 in Wheel | LF963-2012

Authoritative LF963-2012 Product Data

GOODIN publishes one 2,000 lb capacity field; no separate lift/support rating is inferred.

Use the Verified 6 in Diameter for Clearance and Local-Mobility Review

The 6 in wheel diameter is a verified product dimension. It can be used when reviewing the wheel envelope, ground clearance and local trailer positioning requirements.

Wheel count, material, width, bearing design and dynamic rolling rating are not supplied, so none are invented here.

For broader wheel/surface selection logic, see GOODIN's tight-garage trailer mobility guide.

Reserve Lateral Crank Clearance in the Finished Trailer Layout

The sidewind handle needs a usable lateral operating arc after installation. Toolboxes, winches, batteries, coupler hardware and body panels should be reviewed in the complete trailer assembly.

TheUtility-Trailer Upgrade List is useful when several tongue-mounted components must share limited space.

12 in Travel with 12.75 in Bracket Height and 24.75 in Extended Height

These values should be checked together using the same GOODIN measurement reference on the target trailer. Travel alone does not define the complete installed fit.

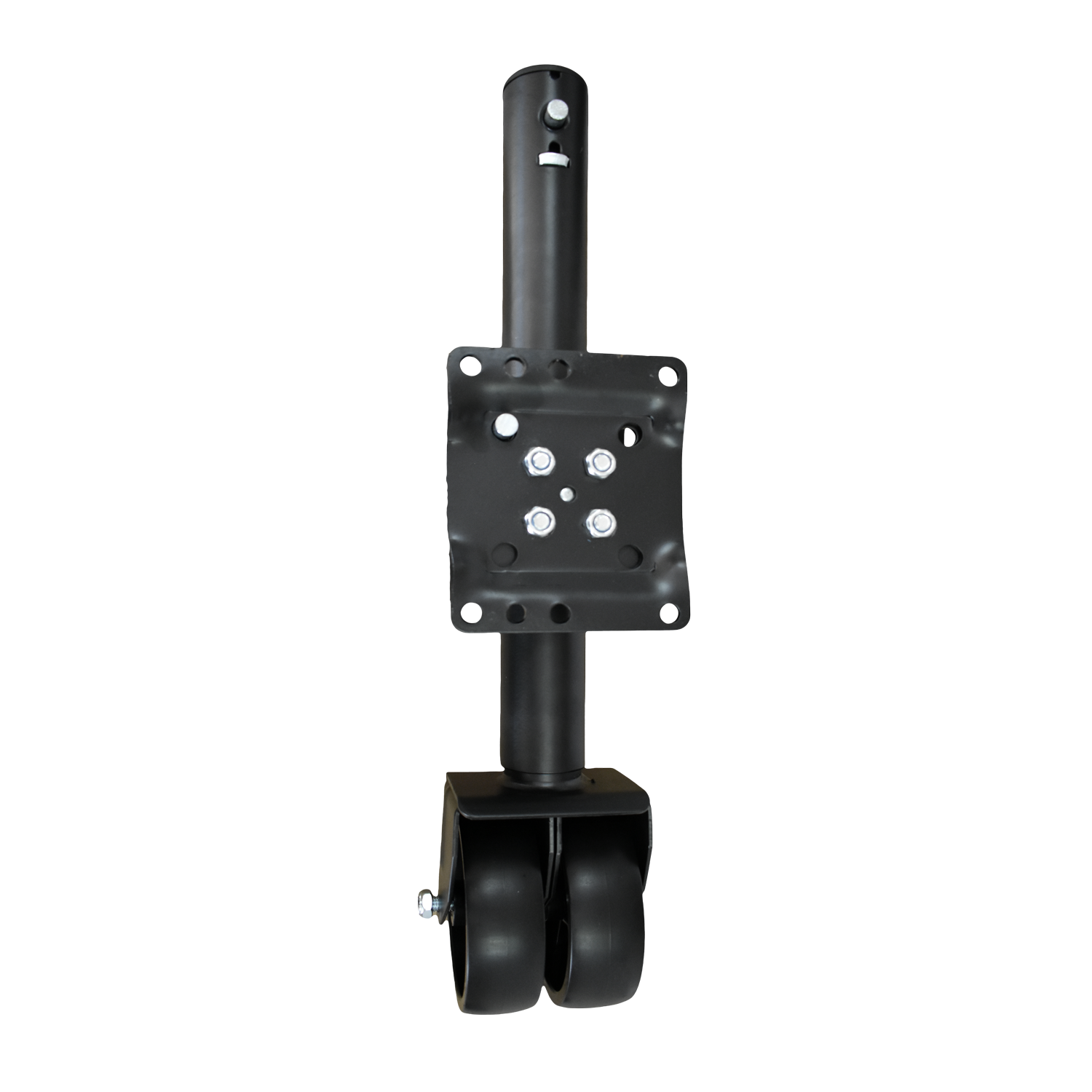

Black Powder Coat on Both Outer and Inner Tubes

LF963-2012 differs from several GOODIN models that pair a black outer tube with a bright zinc inner section. Here, both tube sections are specified as black powder coated.

No coating thickness, salt-spray duration or marine certification is claimed.

What to Confirm Before Ordering LF963-2012

Load: compare the published 2,000 lb capacity with the actual vertical load at the jack position.

Wheel: check the 6 in wheel envelope and real operating surface.

Height: verify 12 in travel and the 12.75–24.75 in published height geometry.

Crank: reserve sidewind operating clearance.

Mount: confirm bracket/frame interface, fasteners and storage geometry from current LF963-2012 documentation rather than from visually similar wheel jacks.

LF963-2012 Buyer Questions

Is the 6 in wheel solid, pneumatic or plastic?

The supplied specification only gives wheel diameter, so wheel material and construction are not assumed.

Does 2,000 lb mean lift capacity?

GOODIN supplies one Capacity: 2000LBS field. This page therefore uses neutral 2,000 lb capacity wording.

Is this definitely a swivel jack?

The supplied authoritative specification does not state swivel mounting, so the page does not claim it until model-specific imagery or drawings confirm the architecture.

Are both tubes black powder coated?

Yes. That is explicitly stated in the supplied LF963-2012 description.

Production Visibility for OEM and Distributor Buyers

Confirm Load, Wheel, Height and Mounting Geometry Together

Send GOODIN the expected jack-position load, trailer/frame drawing, mounting requirements, required heights, sidewind clearance, wheel requirement, ground conditions, quantity and destination market. See customized trailer jack options for non-standard programs.

Wheel-Equipped Trailer-Front Support with Sidewind Access and 12 in Travel

LF963-2012 fits compatible trailer applications that require a published 2,000 lb capacity, sidewind operation, a 6 in wheel diameter and 12 in adjustment travel.

Application approval should consider the actual jack-position load, working-height range, wheel clearance, sidewind access, operating surface and model-specific mounting geometry together.

Use the Wheel for Controlled Local Alignment, Not Road Running

A wheel-equipped trailer jack can assist with coupling, uncoupling and limited local positioning when the trailer, supported load and surface permit. The 6 in diameter does not by itself determine rolling effort; wheel construction, slope, thresholds and trailer resistance also matter.

Check the 6 in Wheel Against the Actual Surface and Clearance Envelope

The verified 6 in diameter provides a useful packaging dimension. Because the source does not state wheel material, width, bearings or dynamic moving-load rating, this page does not promise universal performance on gravel, grass, sand or thresholds.

Match 12 in Travel to Required Coupling and Support Positions

Compare the published 12.75 in bracket height and 24.75 in extended height using the same GOODIN measurement reference on the target trailer. Adequate capacity does not compensate for an incorrect height window.

Coordinate the Crank with Coupler and Tongue-Mounted Accessories

The sidewind handle needs a usable lateral operating arc after installation. Toolboxes, winches, battery boxes, coupler hardware and body panels should be checked in the finished trailer layout.

Do Not Infer Swivel, A-Frame or Pipe-Mount Fit from Similar Wheel Jacks

Many current market wheel jacks combine sidewind operation with swivel mounting, but LF963-2012's supplied specification does not identify its mounting architecture. Confirm bracket style, fasteners, frame fit, stowage path and locking details from current GOODIN model documentation.

Black Powder Coat on Both Tubes Is a Finish Specification, Not a Marine Rating

No coating thickness, salt-spray duration or marine certification is supplied. Repeated saltwater or chemical exposure should therefore be reviewed as a separate RFQ requirement.

LF963-2012 is a wheel-equipped manual trailer jack. Its wheel may assist compatible low-speed local positioning while uncoupled, but it is not a road-running trailer wheel. The 2,000 lb capacity should not be reinterpreted as a guaranteed rolling load because no separate dynamic wheel/load rating is supplied.

Information to Send Before Approval

Provide actual jack-position load, trailer/frame drawing, mounting method, required coupling/support heights, sidewind clearance, wheel requirements, ground surface, intended positioning distance, environment, quantity and destination market.
