Aluminum Trailer Tongue Tool Box, 830 × 490 × 460 mm | GDA006

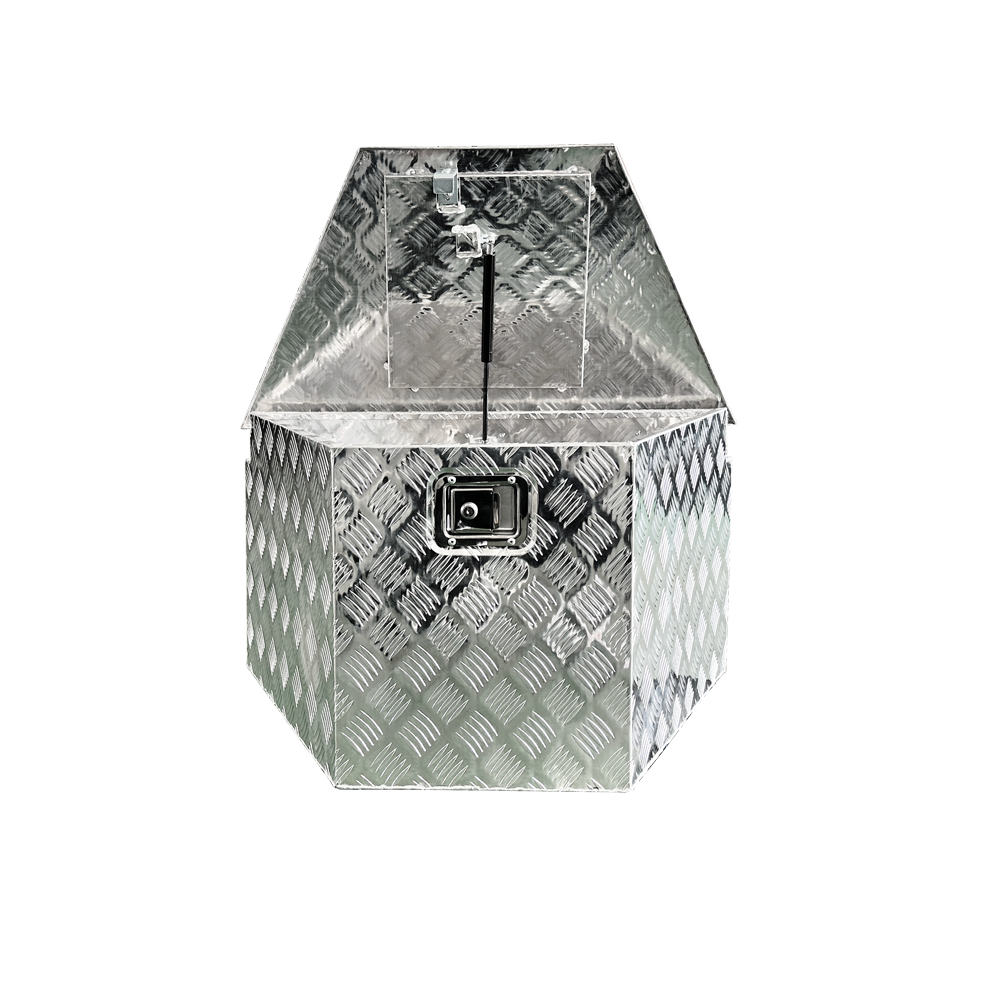

A Key Cylinder Is Integrated into the Recessed Front Latch

The exact front view shows a recessed paddle-style latch with a visible key cylinder. This supports a lockable-latch description while keeping the hardware relatively flush with the front face.

The images do not establish the number of keys supplied, lock material, replacement-key system or theft-resistance rating, so those details remain RFQ items.

Use the Metric Envelope for Fit—Use “33 Inch” Only as a Market Size Reference

Current trailer-tongue boxes are commonly merchandised in nominal inch classes, but engineering approval should remain tied to GOODIN's published 830 × 490 × 460 mm envelope.

860 × 550 × 485 mm Package Size Is a Logistics Figure

The package is 30 mm, 60 mm and 25 mm larger than the product across the three published dimensions. Those differences help with warehouse and freight planning.

They do not define installation clearance, foam thickness, wall thickness or the taper dimensions of the box.

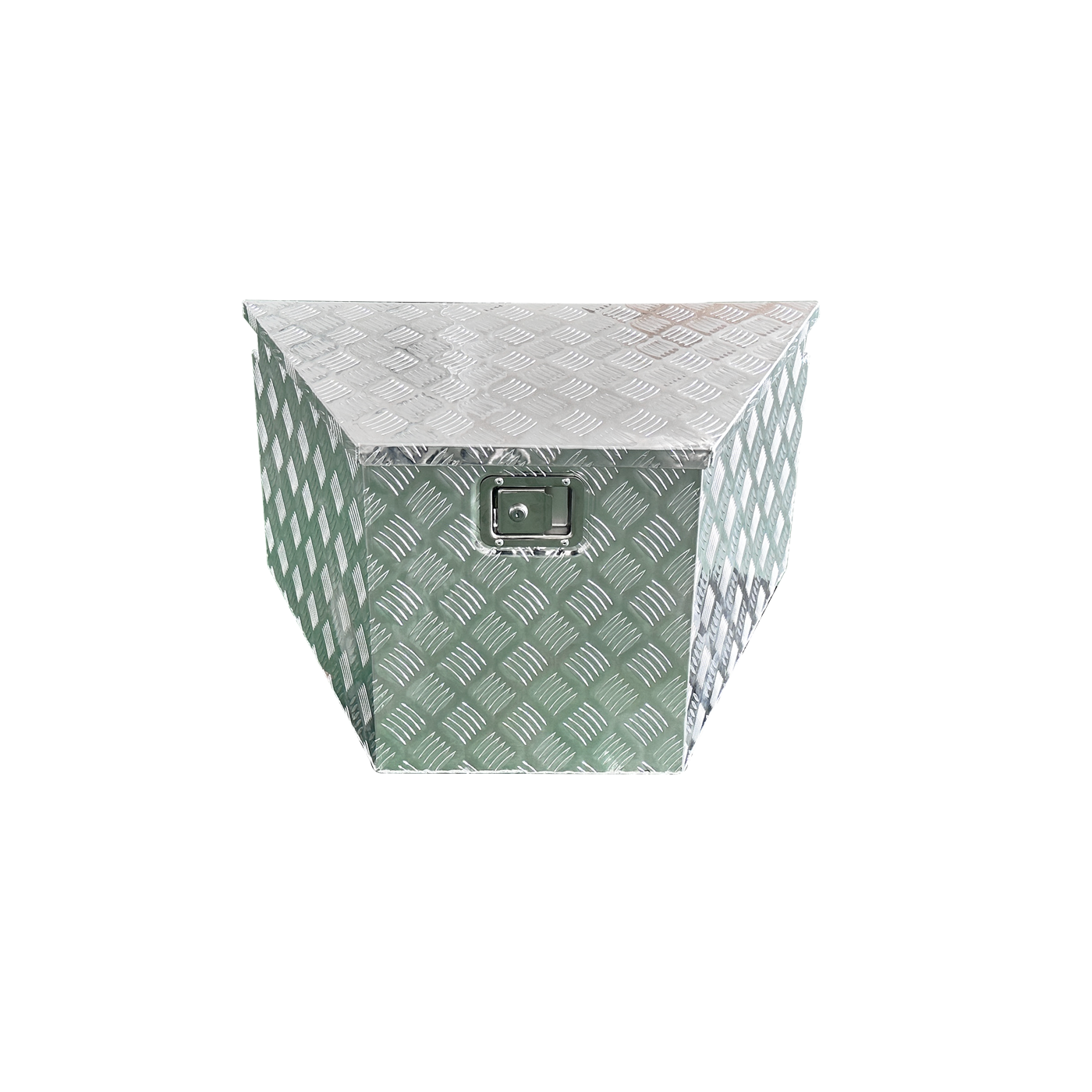

Tapered Shape Helps Define the Application—It Does Not Guarantee Fit on Every A-Frame

Before approval, compare the actual trailer rail angle, usable mounting footprint, coupler position, jack location, wiring, breakaway equipment and turning envelope with the GDA006 drawing. Maximum external dimensions alone cannot confirm compatibility.

Questions Buyers Can Now Answer from the Actual Product

Production Visibility for OEM and Distributor Buyers

For B2B sourcing, product geometry and hardware should be evaluated together with the supplier's production and inspection capability. GOODIN provides factory, production and workshop visibility for OEM and distributor review.

Trademark Registration Across Key Markets

GOODIN maintains trademark registrations in multiple markets as part of its international brand and distribution presence.

Australia

United Kingdom

European Union

Trademark registration indicates brand ownership/registration status and does not constitute product-performance certification, regulatory approval or compliance certification for GDA006.

Protect Coupler, Jack, Chain and Turning Access

Tongue storage must be coordinated with the coupler, safety chains, breakaway equipment, wiring, trailer jack and any winch or spare-wheel hardware already occupying the front frame.

The tapered box reduces unnecessary corner volume, but it does not by itself guarantee tow-vehicle turning clearance. Check the complete truck-and-trailer articulation envelope.

9.15 kg Empty Is Only the Starting Mass at the Front of the Trailer

The empty box weighs 9.15 kg. Brackets, fasteners and stored tools all add mass, and a box installed ahead of the axle group can affect hitch loading depending on its final longitudinal position.

Use the actual loaded box mass and trailer geometry when checking tongue weight, axle loading and payload. No internal storage-load rating is supplied for GDA006.

Mount to Verified Structure—Do Not Treat the Aluminum Skin as the Mounting Specification

The current images verify box construction and hardware but do not show approved mounting holes, brackets or included fasteners. Define the attachment pattern from the GDA006 drawing and the trailer frame structure before drilling or fabricating supports.

Keep the Recessed Lockable Latch Reachable After Installation

The front face contains a recessed paddle latch with a visible key cylinder. Ensure drawbars, jacks, wiring or accessories do not block hand access to this latch when the trailer is coupled or parked.

Plain Aluminum and Checker Plate Do Not Equal a Waterproof Specification

For exposed utility, cargo or recreational trailer service, confirm any lid gasket, water-management detail, drainage and required corrosion environment separately.

GOODIN's Utility Trailer Upgrade List provides broader planning logic for integrating storage with jacks, winches, spare wheels, lighting and tie-down systems.

Choose GDA006 When Tapered Tongue Geometry Matters More than Maximum Box Length

Use the GOODIN Tool Box range to compare GDA006 with rectangular, long-body and other storage architectures instead of treating all aluminum boxes as interchangeable.

Send the Trailer Tongue Drawing with the Enquiry

For approval, provide trailer type, rail angle and spacing, available tongue footprint, coupler and jack position, expected stored inventory and mass, required alloy/thickness, sealing requirement, mounting concept, quantity and destination market.

Use GOODIN's contact / RFQ channel to confirm GDA006 drawings, material specification, mounting details and order hardware.
