2000 lb Sidewind Trailer Jack with 15 in Travel | LF922-2015
Handle Style: Sidewind
Travel Distance: 15"
Bracket Height: 14.375"
Extended Height: 29.375"
Description: Black powder coat outer tube, Zinc plated inner tube
N.W.: 6.6KGS
2,000 lb Sidewind Trailer Jack with 15 in Travel
LF922-2015 is a 2,000 lb trailer jack with 15 inch travel and Sidewind manual operation.
The published geometry includes a 14.375 in bracket height and 29.375 in extended height. A black powder-coated outer tube and zinc-plated inner tube complete the verified specification set without assuming an unconfirmed mounting architecture.
Authoritative LF922-2015 Product Data
The source publishes one 2,000 lb capacity field; this page does not import competitor lift/support rating splits.
Longer Adjustment Range Is Useful Only When the Installed Height Window Matches
LF922-2015 publishes 15 in travel, a 14.375 in bracket height and a 29.375 in extended height. Buyers should compare those values using the same GOODIN measurement reference.
GOODIN'sTrailer Jack Selection Guide provides broader selection logic for matching capacity, travel and working geometry rather than choosing a jack by capacity alone.
Side Crank Access Must Remain Clear After Installation
The verified Sidewind handle requires a usable lateral crank envelope. Handle radius and operating torque are not supplied, so clearance should be checked against the actual LF922-2015 assembly and final trailer layout.
Do Not Infer Swivel, Pipe-Mount or Bracket-Mount Construction from Similar 2,000 lb Jacks
Current 2,000 lb Sidewind / 15 in products exist in pipe-mount, bracket-mount and other configurations. LF922-2015's supplied specification does not identify which architecture applies.
For the functional differences among common trailer-jack architectures, see GOODIN's Trailer Jack Encyclopedia. Final LF922-2015 fit still requires its current drawing or verified product images.

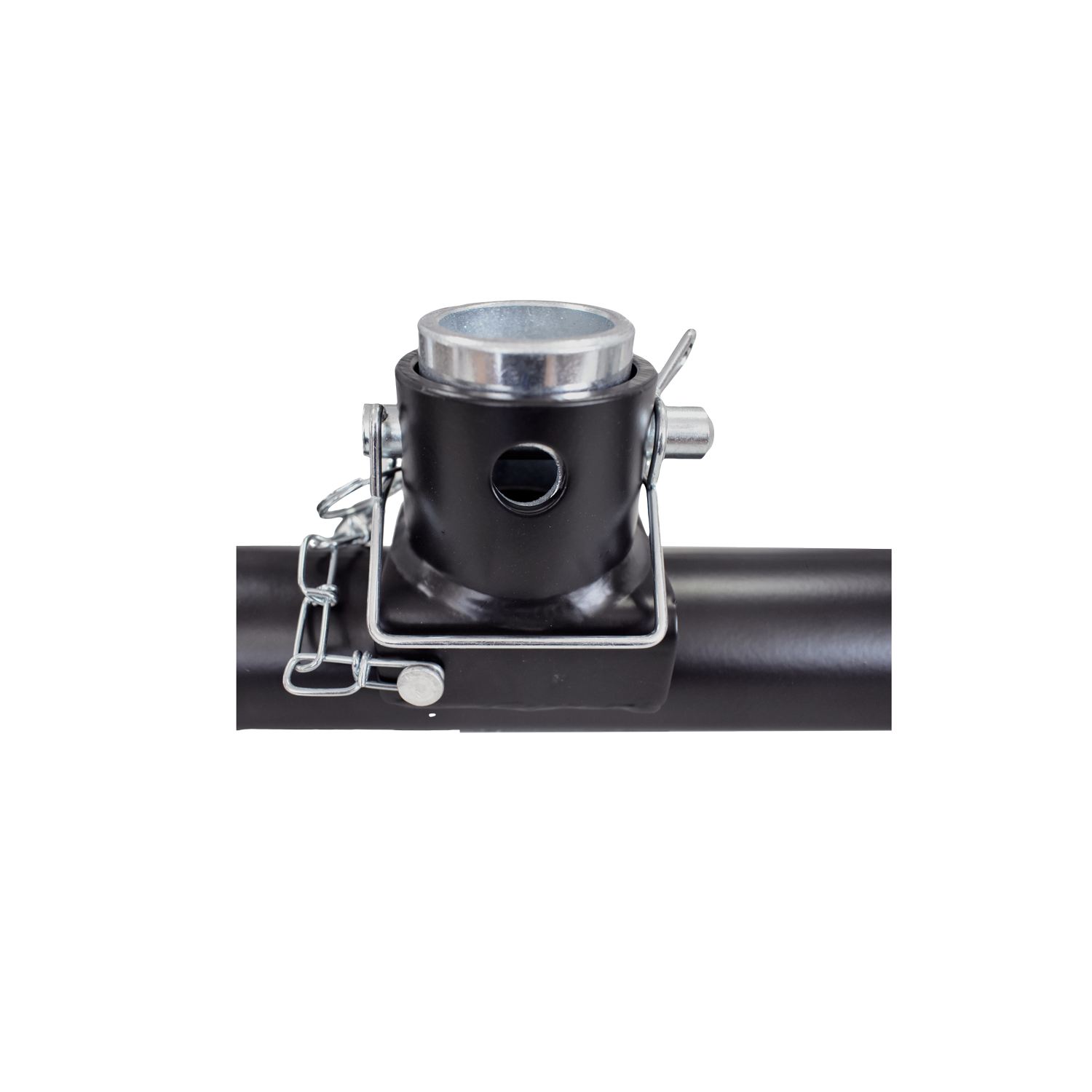

Black Powder-Coated Outer Tube + Zinc-Plated Inner Tube
The finish wording comes directly from the supplied specification and should remain exact.
No powder-coat thickness, zinc-plating thickness, salt-spray duration or marine certification is published, so none is added to the product claim set.
Six Checks Before Approving LF922-2015
Match the real vertical load to the published 2,000 lb capacity.
Confirm that the stroke covers required coupling and support positions.
Use the same GOODIN measurement reference shown in the current drawing.
Keep the lateral crank arc clear of permanent trailer hardware.
Confirm bracket / pipe / swivel / fixed geometry from LF922-2015-specific documentation.
Match the black outer / zinc inner finish system to the actual service environment.
Questions Specific to LF922-2015
When is 15 in of jack travel useful on LF922-2015?
The 15 in stroke is useful when the installed geometry allows the jack to reach both the required coupling position and the parked-support position. Confirm the 14.375 in bracket-height reference, 29.375 in extended height and model-specific mounting interface before replacement or OEM approval.
Is the 2,000 lb rating lift or support capacity?
The supplied source says only Capacity: 2000LBS, so GOODIN uses neutral capacity wording.
Is LF922-2015 a swivel jack?
The current supplied specification does not confirm swivel construction. That feature should be added only after LF922-2015-specific image or drawing verification.
Is bracket height the same as retracted height?
Not automatically. Use GOODIN's model drawing to confirm the measurement reference before treating 14.375 in as a retracted-height value.
Production Visibility for OEM and Distributor Buyers
Confirm Capacity, Travel, Height and Mounting Geometry Together
Send GOODIN the actual jack-position load, trailer/frame drawing, mounting requirements, coupling/support heights, Sidewind clearance, environmental conditions, quantity and destination market.
