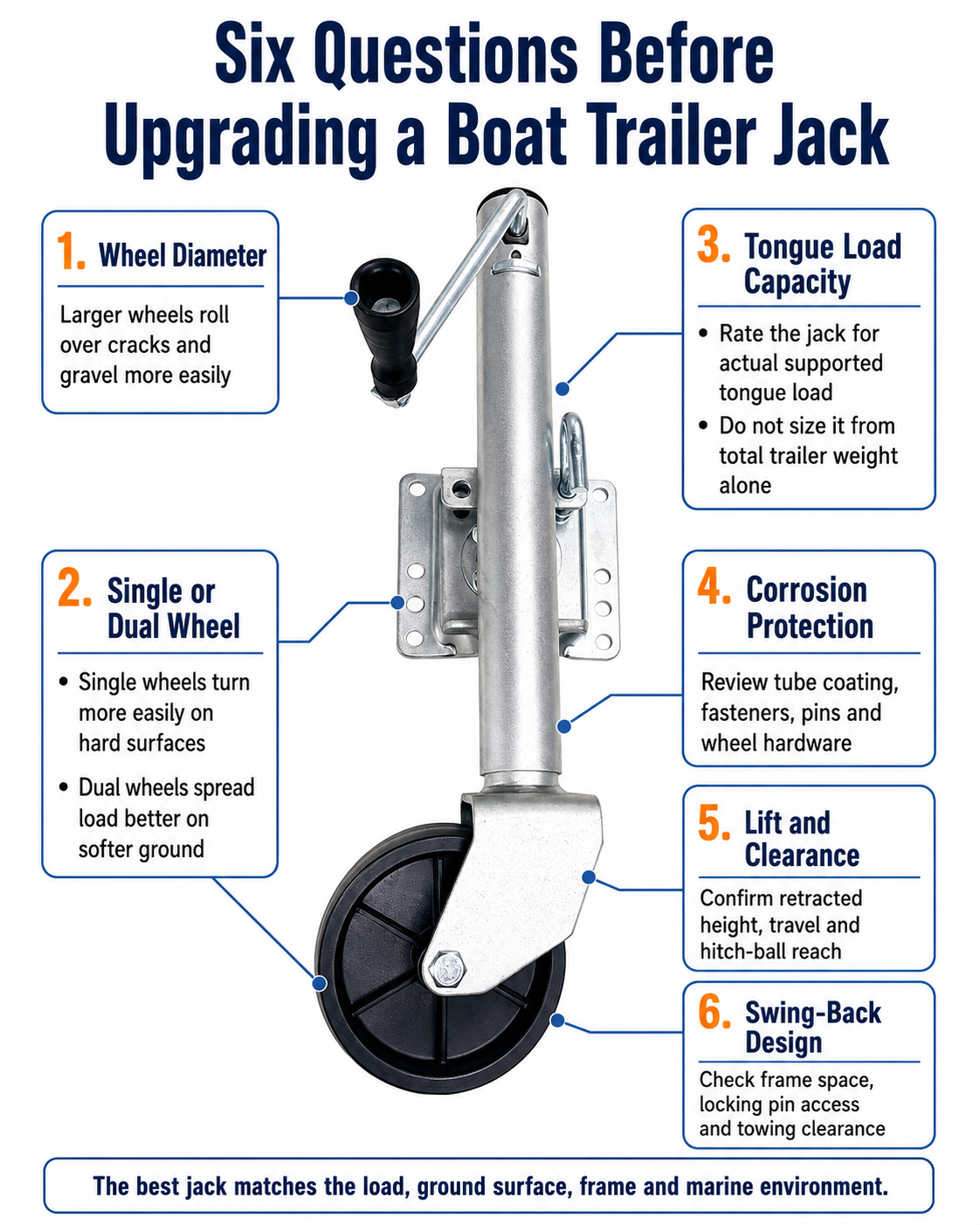

Boat Trailer Jack Upgrade Guide: Wheel Size, Capacity and Swing-Back Fit

The Wheel Is Too Small for the Surface

A small-diameter trailer jack wheel may roll acceptably on a smooth garage floor but struggle at a real boat facility. Expansion joints, gravel, broken asphalt, ramp transitions and storage-yard debris create obstacles that a small wheel must climb rather than roll over.

The issue becomes worse when the wheel is narrow. The same tongue load is concentrated over a smaller contact area, allowing the wheel to sink more easily into warm asphalt, grass, sand or damp soil.

The Caster Does Not Swivel Easily Under Load

A wheel that rotates freely when unloaded may become difficult to turn after the trailer tongue is placed on it. Poor bearing surfaces, corrosion, an offset that is too small or a heavily loaded caster can cause the wheel to drag sideways instead of following the direction of movement.

This is why owners sometimes describe a stock jack as technically functional but frustrating to use. It can lift the trailer, yet it cannot help align the coupler with the tow ball without excessive force.

The Capacity Leaves Too Little Reserve

A trailer jack does not normally support the complete weight of the boat and trailer. It supports the load carried at the tongue when the trailer is uncoupled.

However, choosing a jack whose rating is only slightly above the estimated tongue load leaves little allowance for added fuel, batteries, accessories, uneven ground, dynamic movement or uncertainty in the original estimate.

A higher-capacity marine trailer jack can reduce structural stress and may operate more smoothly, but capacity alone does not solve poor wheel geometry or an unsuitable mounting position.

The Finish Is Not Designed for Repeated Marine Exposure

Boat trailer jacks operate close to road spray, ramp water, dripping hulls and wet storage surfaces. Saltwater exposure accelerates corrosion around:

• The outer and inner tubes.
• The swivel bracket and pivot surfaces.
• The spring-loaded locking pin.
• The crank handle and gear cover.
• The wheel axle, rim and retaining hardware.
• The mounting bolts and backing plates.

A bright surface finish at the time of purchase is not enough. Buyers need to consider coating type, coverage around drilled areas, material compatibility and whether the moving parts can be cleaned and lubricated.

The Jack Cannot Swing Clear for Transport

A fixed jack can be reliable and high-capacity, but it remains below or beside the trailer tongue unless it retracts completely. On some boat trailers this creates reduced ground clearance or forces the owner to crank through a long travel range before every trip.

A swing back boat trailer jack rotates into a horizontal towing position, but it requires adequate tongue length, clear access to the locking pin and enough space to avoid the winch stand, coupler and safety chains.

Choose a Larger Wheel When

• The existing wheel stops at small cracks or ramp edges.
• The trailer is frequently positioned on gravel or uneven pavement.
• The wheel sinks into warm asphalt, grass or compact soil.
• Significant pushing force is required even though the jack cranks normally.
• The wheel fork has enough clearance for a larger diameter.

Choose a Higher-Capacity Jack When

• The actual tongue load approaches the current rating.
• The crank feels heavily loaded throughout its travel.
• The tube, bracket or wheel fork visibly flexes.
• The boat has gained batteries, fuel capacity or heavy accessories.
• The trailer is regularly stored or maneuvered on uneven ground.

Do Not Assume a Bigger Rating Guarantees Easier Movement

A high-capacity jack with a small hard wheel may remain difficult to maneuver. Likewise, a large wheel attached to an under-rated tube and bracket does not create a safe lifting system.

The rating, tube diameter, gear design, bracket, wheel and ground surface must be treated as one system.

Single-Wheel Advantages

A single wheel usually has less scrub resistance when the trailer tongue changes direction on hard pavement. This can make it easier to pivot the front of a small or medium boat trailer in a driveway, garage or smooth marina lot.

A single-wheel assembly is also narrower and may provide more clearance around the trailer frame and nearby equipment.

Single-Wheel Limitations

The load is concentrated through one contact patch. On soft soil, grass, sand or hot asphalt, the wheel may sink or create a rut.

A narrow wheel can also catch in gravel or pavement gaps, particularly when pushed sideways before the caster has aligned itself.

Dual-Wheel Advantages

A dual wheel trailer jack spreads the tongue load over two wheels. The wider contact footprint can improve stability and reduce sinkage on firm grass, compact soil and other moderately soft surfaces.

Dual wheels can also reduce the side-to-side wobble that some users experience with a narrow single-wheel caster.

Dual-Wheel Limitations

Two wheels must scrub against the ground when the assembly pivots sharply. On dry concrete or asphalt, that can make a dual-wheel jack harder to turn than a well-designed single-wheel unit.

Dual wheels also require more lateral clearance and do not turn a boat trailer into a beach dolly. Loose sand or mud may still require a purpose-designed pneumatic or wide-tire support solution.

Start with Actual Tongue Load

The correct starting point is the load supported at the trailer tongue, not simply the boat's advertised dry weight or the trailer's gross vehicle weight rating.

Tongue load can change with:

• Boat position on the trailer.
• Fuel level.
• Outboard or inboard engine weight.
• Batteries and anchors.
• Storage of equipment and personal cargo.
• Winch-post and axle position.

Where possible, measure the loaded tongue weight rather than estimating it from an assumed percentage.

Use Capacity Reserve

A jack should not be selected to operate continuously at its absolute rating. Appropriate reserve helps account for measurement uncertainty, uneven ground, aging components and future equipment additions.

The required reserve should be determined with the trailer or jack manufacturer, especially for commercial, rental or high-frequency marine use.

Check Static and Lift Ratings Carefully

Product literature may refer to support capacity, lift capacity or both. These terms are not always interchangeable. Confirm which rating applies to the intended operation.

Do Not Use the Tongue Jack as an Axle-Lifting Jack

A wheeled tongue jack is generally intended to support and position the front of the trailer. It should not be assumed to be an approved tool for lifting a road wheel or axle during tire service.

Use the trailer manufacturer's approved lifting points and a correctly rated service jack for wheel or axle work.

Advantages of a Swing-Back Design

• Fast transition between parking and towing positions.
• Improved ground clearance during transport.
• Bolt-on replacement options for compatible frames.
• Wheel remains attached to the jack during storage and use.
• Convenient access for frequent launching and retrieval.

Frame Space Must Be Checked First

The jack needs room to rotate without contacting:

• The winch post.
• The coupler handle.
• The bow of the boat.
• Safety chains and electrical wiring.
• Brake lines or breakaway components.
• Other tongue-mounted accessories.

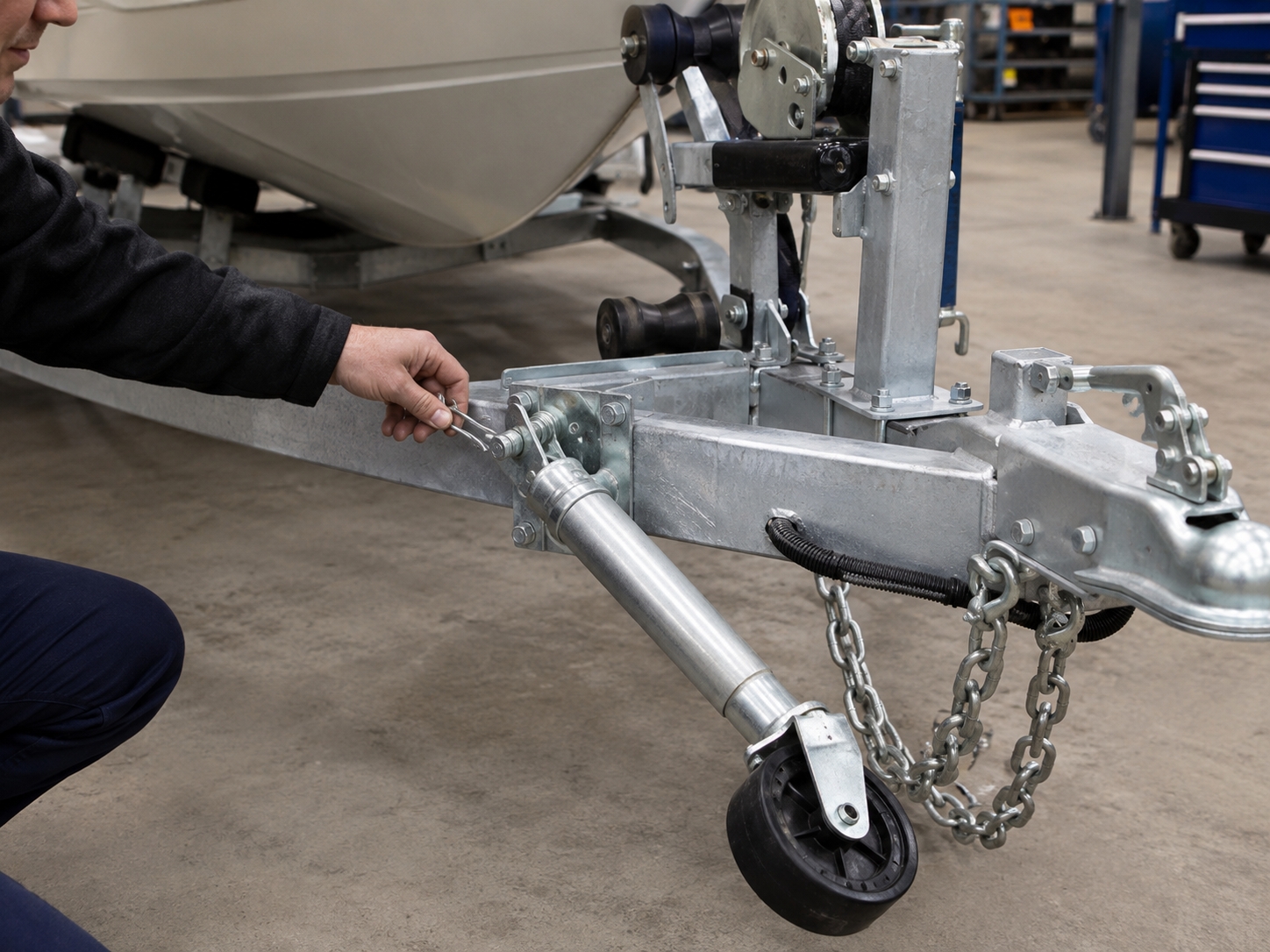

The Locking Pin Is a Critical Component

The spring-loaded pin or locking mechanism must engage fully in both the vertical and horizontal positions. Corrosion, bent brackets, worn holes and trapped sand can prevent complete engagement.

Before applying tongue load, confirm that the jack is fully locked. Before towing, confirm that it is fully rotated, locked and clear of the road.

Short Trailer Tongues May Need Another Mounting Style

Some short-tongue trailers do not provide enough space for a conventional swing bracket. A different bracket, channel mount or fixed jack may fit better.

Ground Pressure Matters

A narrow wheel can support the rated load structurally while still sinking into:

• Warm asphalt.
• Wet grass.
• Loose gravel.
• Sand.
• Mud or soft soil.

Increasing wheel width, wheel diameter or the number of wheels can reduce ground pressure, but very soft surfaces may still require a wheel dock, board or purpose-built wide tire.

Do Not Maneuver a Heavy Trailer on a Slope by Hand

A better wheel reduces rolling resistance but does not control the trailer's total mass. Manual movement should be limited to level or nearly level surfaces where the operator can maintain control.

Use wheel chocks and appropriate handling equipment. Never depend on the jack caster alone to hold a trailer in place.

Outer and Inner Tubes

Look for suitable zinc plating, galvanizing or other corrosion-resistant treatment. Pay attention to scratches, weld areas and telescoping surfaces where coating damage can expose the base metal.

Pivot and Locking Pin

The swivel bracket contains close-fitting moving surfaces. Salt deposits and rust can prevent smooth rotation or complete pin engagement.

Wheel Axle and Fork

The wheel may still appear usable while the axle pin, fork or retaining hardware is already corroding. Inspect for looseness, bending and uneven wheel rotation.

Crank, Gear and Screw Mechanism

Water can enter through the upper cap, handle opening or damaged seals. Follow the manufacturer's lubrication instructions and avoid forcing a jack that becomes difficult to crank.

Mounting Hardware

Bolt-on brackets should use compatible, correctly sized fasteners. Mixed-metal contact, loose U-bolts and trapped salt can accelerate corrosion around the trailer frame.

Retracted Height

Confirm that the jack can lower the coupler enough to reach the tow ball and provide sufficient towing clearance when stored.

Extended Height

The jack must raise the coupler high enough to clear the hitch ball without operating at an unstable or prohibited extension.

Travel Distance

Travel is the vertical movement available through the screw mechanism. It is not always the same as the total range created by a drop leg or adjustable mounting position.

Wheel and Bracket Clearance

Check the wheel against the ground, trailer frame, winch post and boat hull throughout the complete operating and swing path.

1. Measure Before Ordering

Record the trailer-frame dimensions, current bracket location, available swing radius, retracted height, required lift and measured tongue load.

2. Support the Trailer Safely

Couple the trailer to the tow vehicle or use an approved support arrangement before removing the existing jack. Chock the trailer road wheels.

3. Inspect the Mounting Area

Remove corrosion and inspect the frame for cracks, deformation or damaged coating. Do not mount the new jack over a structurally weakened section.

4. Fit the Bracket Correctly

Use the supplied or approved mounting hardware for the frame size. Keep brake lines, wiring and safety chains clear of the bracket.

5. Test the Complete Movement

Before applying full load, verify:

• The jack locks in the vertical position.
• The wheel rotates and swivels freely.
• The crank clears the boat and winch stand.
• The jack raises and lowers through the required range.
• The assembly swings into the towing position.
• The locking pin engages fully.

6. Recheck After Initial Use

Inspect mounting-bolt torque, bracket position and pin engagement after the first few trips. New hardware can settle under load and vibration.

How Do I Know What Size Boat Trailer Jack I Need?

Measure the actual loaded tongue weight and select a jack with appropriate capacity reserve. Also confirm the frame dimensions, retracted height, lift range and mounting clearance. Do not select the jack from total trailer weight alone.

Is a Bigger Trailer Jack Wheel Always Better?

A larger wheel generally rolls over cracks and gravel more easily, but it also requires more clearance and does not automatically improve jack capacity. Wheel width, material and caster geometry matter as well.

Is a Single-Wheel or Dual-Wheel Jack Easier to Move?

A single wheel normally turns more easily on smooth hard surfaces. Dual wheels distribute load over a wider area and may perform better on grass or compact soil, but they can create more scrub resistance during tight turns.

Can a Dual-Wheel Jack Be Used on Sand?

Dual wheels can reduce sinkage compared with one narrow wheel, but loose beach sand may still overwhelm a standard caster. A wide pneumatic or purpose-designed beach wheel may be required.

What Is the Advantage of a Swing-Back Boat Trailer Jack?

It rotates into a horizontal towing position, improving road clearance and reducing the amount of cranking required before travel. It must have enough frame space and a fully functioning locking mechanism.

Can I Replace a Fixed Jack with a Swing Jack?

Often yes, provided the trailer frame, tongue length, load, mounting area and swing clearance are compatible. Large or heavily loaded trailers may still require a fixed high-capacity design.

How Much Capacity Reserve Should a Trailer Jack Have?

The jack should not operate continuously at its maximum rating. The appropriate reserve depends on measured tongue load, operating conditions, future equipment changes and manufacturer guidance.

Why Is My Trailer Jack Hard to Crank?

Possible causes include excessive load, dry or damaged gears, a bent screw, corrosion, contamination or operating beyond the intended travel. Do not force the handle until the cause has been identified.

Why Does My Trailer Jack Wheel Refuse to Swivel?

The caster may be heavily loaded, corroded, poorly offset or trapped against an uneven surface. Wheel-fork damage and axle friction can also prevent smooth alignment.

Should a Boat Trailer Jack Be Rinsed After Saltwater Use?

Yes. Freshwater rinsing helps remove salt from the tube, bracket, locking pin, wheel axle and mounting hardware. Lubrication and inspection should follow the jack manufacturer's instructions.
