More Welding Can Make a Trailer Weaker: Why “Stronger-Looking” Reinforcement Can Shorten Fatigue Life

Engineering analysis, not a repair procedure or a design approval. Detail-specific life comparisons are not universal trailer-life predictions. Structural alterations require qualified assessment.

Cyclic loading changes what “strong” means

When people see a cracked trailer frame, the first question is often whether the trailer was overloaded. Overloading certainly can cause structural damage, but fatigue does not require a single overload event. Repeated loading can initiate and grow cracks without a single event that causes gross yielding or immediate fracture. Trailer structures experience changing stresses over long service histories; the load spectrum and the local detail, rather than a simple pass/fail overload story, determine the fatigue question.

A main beam experiences changing bending stresses as wheel loads move relative to the chassis. Suspension brackets transfer concentrated forces into the structure. Landing gear attachments see different loading during coupling, parking and loading operations. Cross-members interact with the longitudinal beams as the chassis twists. Poor roads increase load amplitudes and introduce additional vibration. The magnitude of the stress matters, but so does the stress range—the difference between the high and low stress experienced during a cycle—and the number of times that range is repeated.

This is why static load capacity and fatigue durability cannot be treated as interchangeable. A reinforcement may make a beam harder to permanently bend in one extreme event, yet introduce a welded detail that becomes the preferred location for a fatigue crack after millions of smaller cycles. That distinction is particularly important around welded structures.

Why welded joints behave differently

A smooth steel plate and a welded steel detail do not have the same fatigue behavior. The difference begins with geometry. Where the weld face meets the base material—the weld toe—the surface geometry changes abruptly. Instead of stress flowing through a smooth plate, it has to pass through a local notch-like transition. That transition concentrates stress. IIW-related guidance recognizes the importance of weld-toe geometry and post-weld improvement for fatigue performance. A recent technical review explains how toe treatment can reduce the notch effect and introduce beneficial residual stresses in appropriate details. [10]

Welding also introduces residual stresses as heated material expands and then contracts during cooling. The resulting stress state is more complicated than what would exist in the original plate. The result is that a welded joint can become fatigue-critical even when the surrounding steel has much higher theoretical fatigue capability. SSAB makes this distinction explicitly in its trailer design guidance. Higher-strength steel can improve the fatigue strength of the unwelded base material, but the benefit becomes much more limited at welded joints because local stress concentration and initial weld imperfections dominate the fatigue response. Consequently, SSAB states that welded-joint fatigue life depends more strongly on design and manufacturing than on simply choosing a stronger base material. [1]

This is an important engineering lesson. Replacing a mild steel with a much stronger grade does not automatically make an unchanged welded detail proportionally more fatigue resistant. Neither does depositing a larger amount of weld metal. The local detail still matters.

The Problem Is Not “Too Much Welding” in Isolation

The phrase “more welding can make a trailer weaker” needs an important qualification. Weld metal itself is not automatically harmful. There are situations where increasing effective weld size is exactly the correct engineering response. If fatigue failure is occurring through the throat of a fillet weld, TWI notes that increasing weld size or changing the joint configuration can improve fatigue strength. [7] The problem occurs when designers or repairers treat weld quantity as a substitute for fatigue design.

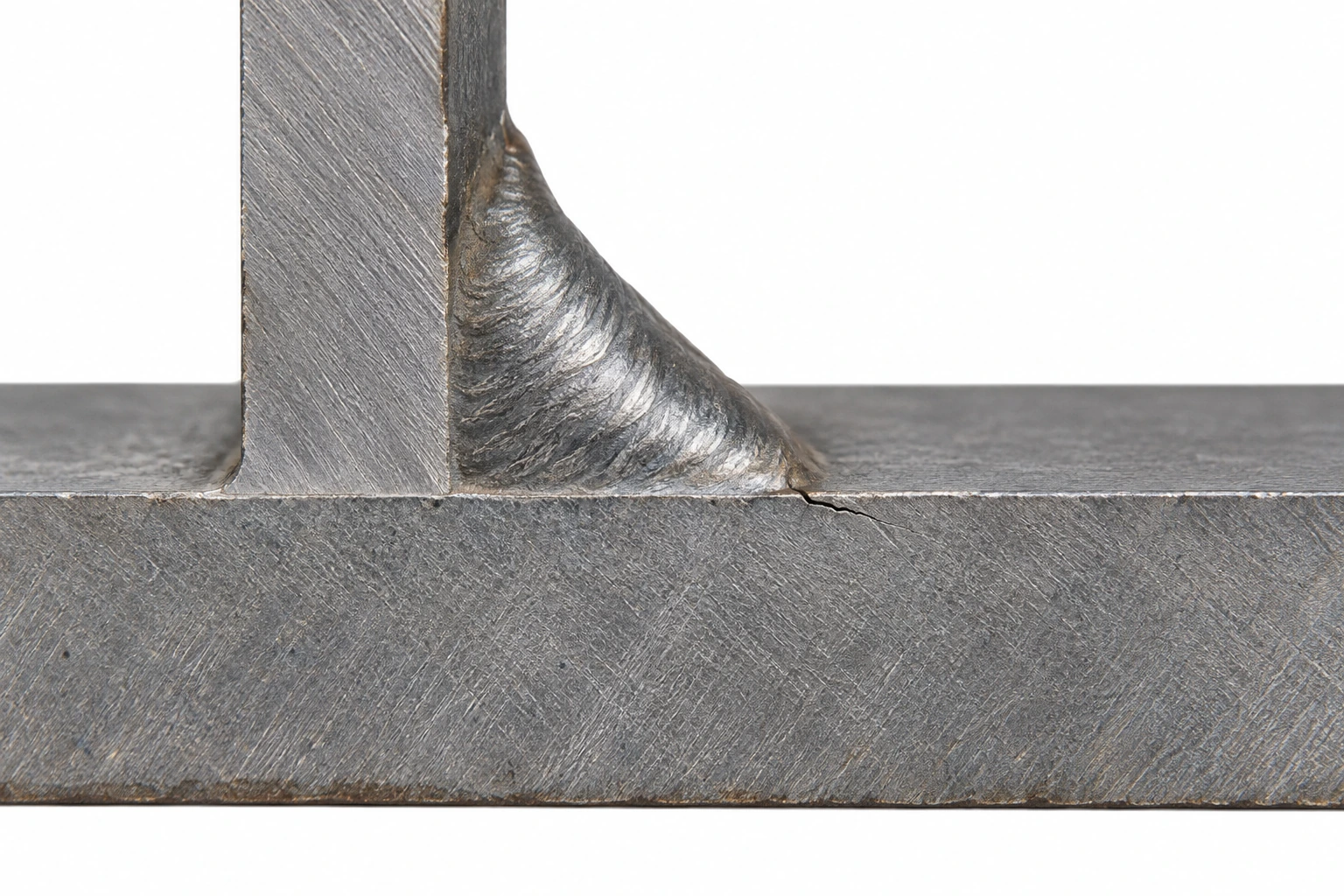

If the fatigue-critical location is the weld toe in the parent plate, making the bead larger may not address the mechanism at all. An excessively convex weld profile can actually produce a sharper toe angle and therefore a stronger local stress concentration. TWI identifies excessive convexity as a weld profile capable of adversely affecting fatigue behavior for precisely this reason. [8] A better question is therefore not:

How much weld is there? It is: Where is the weld, how is it loaded, what geometry does it create, and how does stress flow through the surrounding structure? That change in question is the foundation of fatigue-conscious trailer design.

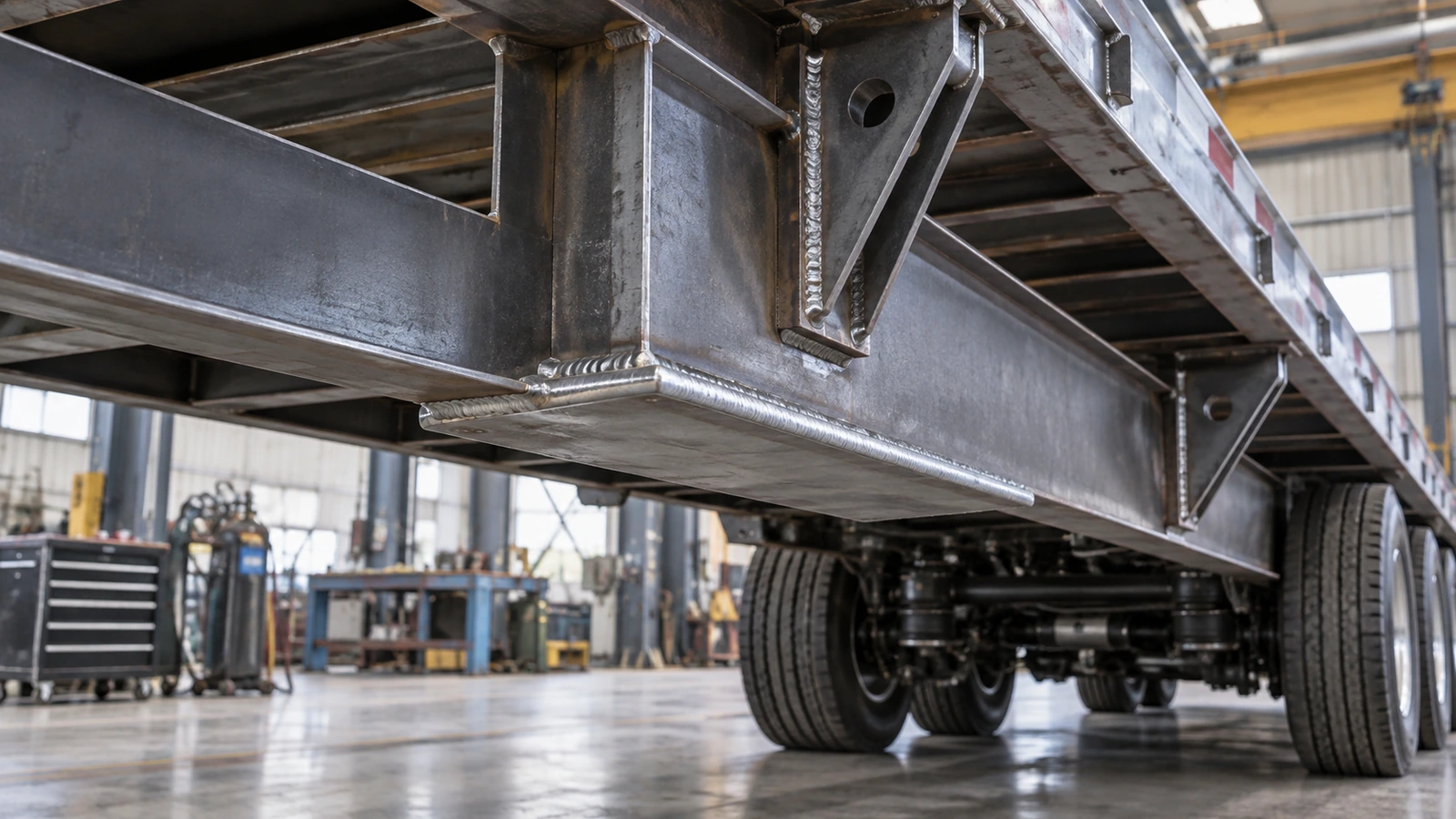

Why a reinforcement plate can create a new weak point

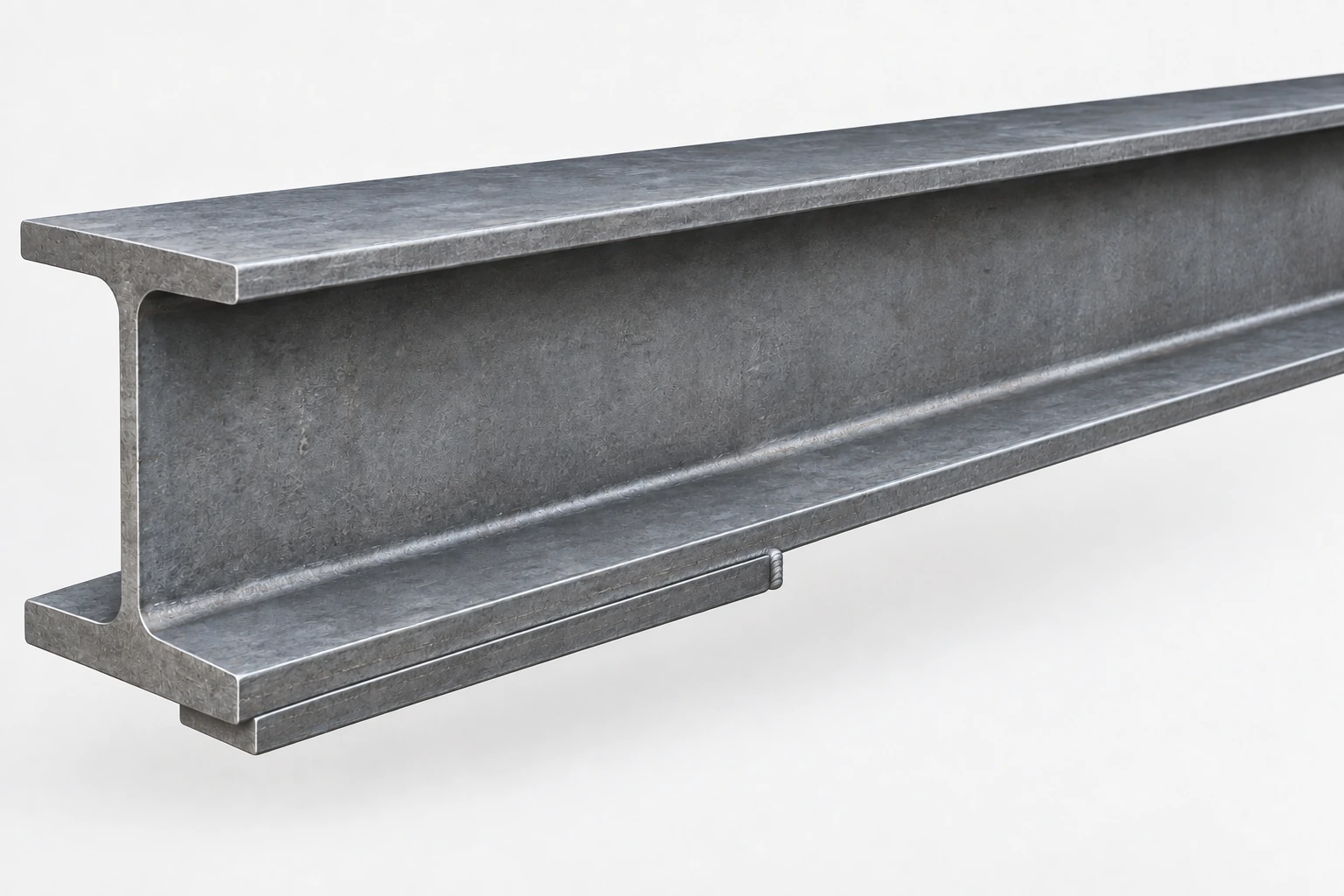

Consider a trailer main beam under vertical bending. The upper and lower regions of the beam carry the largest longitudinal stresses, while stresses decrease toward the neutral axis near the middle of the web. Suppose the designer decides that the lower flange needs reinforcement. A straightforward solution is to weld another plate onto it. From a static perspective, the logic can make sense. Additional material can increase local section properties and stiffness.

But the plate cannot continue forever. At some point it ends. That termination creates a transition from a stiffer reinforced section to a less stiff unreinforced section. The structural stiffness therefore changes over a relatively short distance. Instead of load flowing smoothly through a uniform beam, the load path must redistribute around that transition. Then welding adds another geometric discontinuity precisely where the stiffness changes. The structure may now contain three interacting fatigue drivers:

the global stress already present in the flange, the local stress increase created by the stiffness transition and the notch effect created by the welded attachment. This is why reinforcement must be evaluated as part of the load path rather than simply as additional steel. SSAB provides a particularly useful trailer-specific example. Its design guidance recommends minimizing unnecessary welded joints in chassis main beams and warns that reinforcement plates welded onto webs or flanges may improve static capacity while doing the opposite for fatigue. In its lower-flange example, the added plate introduces a transverse welded detail and a stiffness gradient. SSAB states that this configuration can reduce fatigue life by at least eight times compared with the relevant longitudinal welded detail in the illustrated design. [2]

The “eight times” figure should not be interpreted as a universal multiplier applying to every reinforcement plate. It is the consequence of a specific fatigue comparison. That distinction matters. The engineering lesson is not that every welded reinforcement reduces trailer life by exactly 87.5 percent. The lesson is that changing the welded detail category and local stress condition can overwhelm the apparent benefit of simply adding material.

Why an Eightfold Difference Is Plausible in Fatigue

Fatigue life is extremely sensitive to stress range. In many conventional welded-joint S-N relationships, fatigue life in the relevant regime is related approximately to the inverse cube of the stress range. TWI describes commonly used welded-joint fatigue curves with an inverse slope of approximately three, and SSAB uses the same relationship in a trailer attachment example. [9] [3] Conceptually:

N ∝ 1 / (Δσ)³

where N represents cycles to failure and Δσ represents stress range. If a design change doubles the stress range at the fatigue-critical detail, the simplified relationship gives:

2³ = 8

meaning the predicted fatigue life can fall to approximately one eighth of the original value. This is why apparently modest changes in local stress can produce dramatic differences in service life. It also explains why moving a weld away from a high-stress region can sometimes deliver more fatigue benefit than increasing material thickness or weld size. This comparison assumes the same applicable S–N curve, stress definition and slope-three regime; other slopes, thresholds and variable-amplitude histories require their own assessment. It explains stress sensitivity, not an unconditional life prediction for a complete trailer. Do not multiply the reinforcement-detail penalty and the stress-range example blindly: they are different comparisons and must not double-count the same effect.

Weld Direction Matters Because Stress Direction Matters

A weld running along the primary direction of stress is not equivalent to a weld crossing it. SSAB’s trailer guidance highlights this difference clearly. Weld discontinuities generally follow the weld toe and root. When those discontinuities run approximately parallel to the principal stress direction, their effect can be relatively limited. When the main stress acts transversely across the welded detail, fatigue resistance can be much lower.

SSAB gives a trailer attachment example in which an attachment bracket welded to a lower flange has less than five percent of the fatigue life associated with the longitudinal weld connecting the beam web and flange. [1] That does not mean all transverse welds are unacceptable. It means orientation changes the severity of the detail. This is one reason a reinforcement plate welded across a tension-loaded flange can behave very differently from the long longitudinal seam already present in the fabricated beam.

The amount of weld may have increased. The fatigue quality of the critical detail may have decreased.

A better load path can outperform a heavier reinforcement

Once fatigue becomes the design objective, reinforcement strategy changes. Instead of asking where additional steel can be welded, the designer starts asking where the force should enter the structure. Landing gear provides an excellent trailer-specific example. The gooseneck region of a trailer experiences significant structural stress because of the chassis height transition. Welding a landing-gear attachment onto a flange places the connection near one of the highest-stress zones in the beam cross-section.

SSAB shows that redesigning the attachment so the load enters through the web closer to the beam’s neutral axis can substantially improve fatigue performance. In one design exercise, moving away from the critical transverse flange weld allowed the fatigue-sensitive detail to be changed rather than merely strengthened. [3] The important design move was therefore not: make the weld larger. It was: change where and how the load enters the beam.

That principle applies far beyond landing gear. Suspension hangers, jack brackets, cross-member connections, ramps, toolboxes, hydraulic equipment, fenders and other trailer attachments all introduce loads into a larger structural system. A bracket should therefore be evaluated not only by whether the bracket itself is strong enough, but by what it does to the beam, tube or plate receiving its load. A locally indestructible bracket attached to a fatigue-sensitive region can simply move the failure into the surrounding structure.

Closer to the neutral axis means lower longitudinal bending stress in the illustrated load case, not an absence of load. The web still has to carry shear, local bearing and attachment forces, and any bolts, holes or stiffeners need their own checks. Relocation is a design option to evaluate, not a universal instruction to attach equipment anywhere on the web.

Gussets Can Move Stress Instead of Eliminating It

Gussets are another reinforcement feature that often looks inherently beneficial. A triangular plate appears to distribute force and reduce bending in a bracket. In many applications it does. But again, the gusset must end somewhere. If the gusset sharply increases stiffness and terminates in a highly stressed region, the end of the gusset can become a new structural hot spot. The load has not disappeared. It has been redirected.

For trailer engineers, the implication is not “never use gussets.” It is that gussets should be designed as load-transfer devices rather than decorative reinforcement. Their shape, termination, weld direction, stiffness transition and location relative to the principal stress field all matter.

A Stronger Steel Cannot Rescue a Poor Fatigue Detail

The rise of high-strength structural steels makes this issue even more important. Higher yield strength can allow trailer designers to reduce material thickness and weight while maintaining static load capacity. But reducing thickness generally raises the working stress in the remaining material. For smooth base material, higher material strength can compensate for much of this increase. At a welded fatigue detail, however, the improvement is smaller because stress concentration, residual stress and weld imperfections continue to control performance.

This creates a potential design trap. A manufacturer may replace conventional steel with high-strength steel, reduce section thickness, preserve static capacity and conclude that the upgraded structure is equivalent or better. If the welded details remain unchanged, the higher working stresses can reduce fatigue life. SSAB specifically warns about this condition in trailer chassis design and argues that lightweighting with high-strength steel should be accompanied by redesign of fatigue-critical welded details. [1] [3]

This is a clear example of why material substitution cannot be separated from structural design. A stronger material does not automatically create a stronger component. The complete system determines the result.

Production consistency is part of structural durability

Welding also changes the manufacturing condition of the surrounding structure. Heat input creates localized expansion and contraction. As the weld cools, shrinkage can distort beams, tubes and brackets. SSAB notes that, in trailer applications, welding distortion can become more important in practice than the static strength of the weld itself. Its manufacturing guidance therefore recommends minimizing unnecessary weld cross-section, controlling heat input, managing fit-up, using appropriate welding sequences and reducing unnecessary reinforcement. [5]

This introduces another reason that “more welding” should not be treated as automatically safer. Additional weld length or oversized welds can mean additional heat input. Additional heat input can mean more distortion. More distortion can change dimensional alignment. Changed alignment can alter assembly fit-up and introduce secondary stresses once components are forced into position. The initial design problem may therefore propagate through manufacturing: extra reinforcement → additional welding → additional heat → distortion → misalignment → forced assembly → secondary stress → altered fatigue behavior.

This is exactly why a Materials & Manufacturing analysis cannot stop at material strength or weld throat size. The manufacturing process changes the geometry that the final structure actually carries into service. Heat input must stay within a qualified procedure for the material, joint and thickness. Reducing it indiscriminately can compromise fusion or produce other problems; a material-specific recommendation is not a universal welding setting. The aim is sufficient, controlled heat and the specified effective weld section, not the smallest possible bead.

Weld Quality Is a Fatigue Variable, Not Just a Cosmetic Variable

Trailer buyers frequently judge weld quality visually. Appearance does matter, but visual attractiveness and fatigue performance are not the same thing. A smooth bead can still be located in a poor fatigue detail. An unattractive bead can sometimes exist in a low-stress region where it has little influence on structural durability. The correct assessment therefore combines location, geometry, loading and workmanship. Several weld imperfections are especially important for fatigue because they intensify local stress or provide crack-like initiation sites.

SSAB identifies surface-breaking defects including undercut, root defects, lack of fusion, cold laps and cracks as particularly detrimental to trailer fatigue performance. It also recommends careful control of weld start and stop positions and smoother weld transitions in critical regions. [4] TWI similarly notes that excessive weld convexity can produce unfavorable toe geometry. Fit-up must also preserve the effective throat and joint geometry specified by the design. [8]

This distinction is important for production control. A manufacturer does not merely need a welder capable of depositing enough metal. It needs a process capable of repeatedly creating the intended structural detail.

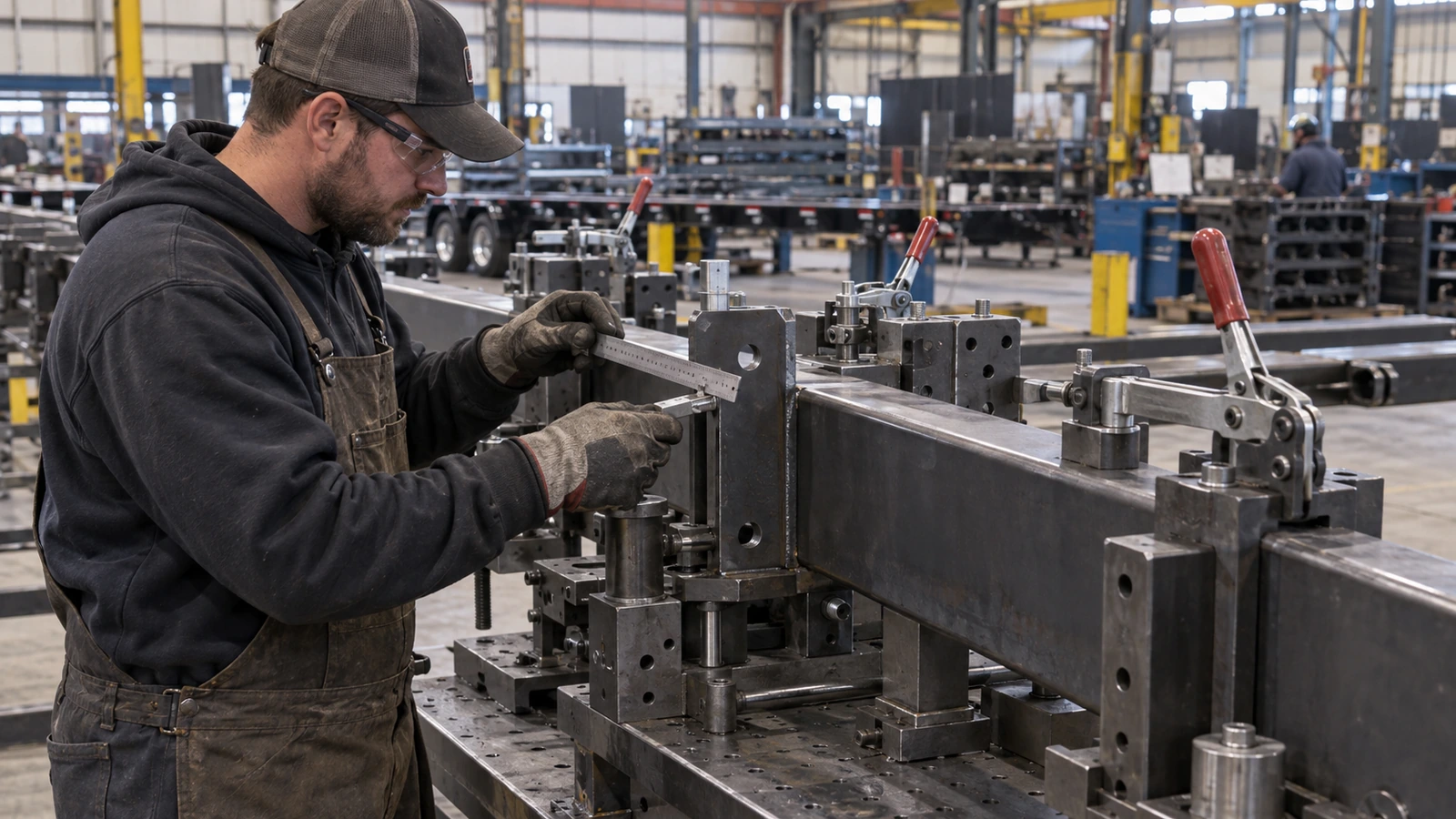

Production Consistency Matters More Than One Perfect Prototype

Fatigue performance becomes even more complicated in volume manufacturing. A prototype can be carefully fitted, clamped and welded by an experienced operator. Production must repeat that result hundreds or thousands of times. Now tolerances enter the problem. Suppose a bracket is designed with an acceptable stress distribution only when its fit-up gap remains small and consistent. If incoming material dimensions vary, fixtures wear, parts are formed slightly differently or welding distortion shifts the geometry, operators may compensate manually.

One operator may close the gap with clamps. Another may fill it with weld metal. Another may alter welding sequence. Another may increase bead size. All four trailers can appear visually complete. They may not contain the same fatigue detail. This is consistent with SSAB’s emphasis on design, weld quality and manufacturing control in trailer fatigue performance. [1] [4]

The manufacturing question therefore becomes: Can the intended fatigue detail be produced repeatedly? That question includes part tolerances, fixture repeatability, weld access, root gap, welding sequence, heat input, distortion, start-stop positioning, inspection and rework. At production scale, repeatability becomes a structural property.

Repair the mechanism—not just the visible crack

A cracked trailer frame often receives a straightforward field repair: remove or stop the crack, weld the damaged region and add a reinforcement plate. Sometimes that is appropriate. Sometimes it creates the next crack location. If a repair only restores the cracked material without addressing why stress concentrated there, the repaired region may remain fatigue-sensitive. Adding a very stiff reinforcement can move the peak stress from the original crack location to the end of the repair plate.

The original crack disappears. A new crack can later initiate beside the repair. This does not mean cracked trailer structures should never be welded or reinforced. It means fatigue repair requires diagnosis before reinforcement. The engineer or qualified repair professional needs to determine whether the original problem came from an isolated defect, an undersized section, poor weld quality, an unfavorable attachment detail, excessive service loading, distortion, corrosion loss or a fundamental load-path problem.

Different causes require different repairs. Weld toe treatment provides a useful example. IIW and TWI guidance recognizes techniques such as burr grinding, TIG dressing and peening as methods that can improve fatigue behavior in appropriate welded details by changing toe geometry and/or residual stress conditions. [10] [7] The improvement does not come from adding more weld metal. It comes from changing the fatigue mechanism. Suspected structural cracking should be referred to the trailer manufacturer and a qualified structural or welding professional before further use or modification. The illustrations here are explanatory, not a field repair procedure. Grinding or peening is not a way to conceal an existing crack, and post-weld treatment requires a defined procedure, trained operators and appropriate verification. [7] [10]

Fabrication cracks and missing-looking welds

A visible crack before a trailer enters service is a fabrication concern, not evidence of road-induced fatigue. Its cause requires examination; a photograph alone cannot establish the metallurgical mechanism. Equally, a plate that is not welded on every edge may follow an intentional design. Adding an apparently missing weld without the drawing can introduce a new restraint or transverse fatigue detail. The correct comparison is between the manufactured joint and the approved design, not between how much metal two trailers appear to contain.

What Dealers and Buyers Can—and Cannot—Judge Visually

Dealers and end users should still inspect trailer welds. Visible cracks, severe undercut, obvious lack of fusion, major distortion or other abnormal discontinuities deserve attention. But the opposite conclusion should be avoided: a large, continuous and visually impressive weld is not proof of superior fatigue durability. Fatigue-critical geometry can exist beneath excellent cosmetics. Likewise, an attachment that is intentionally not welded on every edge may be designed that way to avoid creating unfavorable restraint or fatigue details.

The safest practical rule is therefore not to demand more welding whenever a connection “looks light.” For structural modifications, repairs or additional equipment installation, the load path and original chassis design should be understood before new reinforcement is added. This is especially important when welding directly to highly stressed main-beam flanges.

What OEMs and sourcing teams should specify

This distinction should also change procurement. An RFQ that asks only for “heavy-duty welds” or “full welding” is not an engineering specification. Neither is a requirement that weld beads simply look large. For structural trailer components, a useful specification may need to define the applicable drawing and weld symbols, required weld size and length, joint geometry, permitted intermittent or continuous weld locations, base and filler materials where relevant, fit-up expectations, critical start-stop locations, acceptable surface discontinuities, inspection requirements and any fatigue-sensitive details requiring additional control.

Heat input may also matter when high-strength steels are used. SSAB notes that excessive heat input can reduce strength and impact toughness in high-strength structural steel welded joints and provides grade-specific guidance for controlling the process. [6] The procurement objective is therefore not to maximize one variable. It is to ensure the supplier repeatedly produces the designed welded detail. A larger weld may be desirable when load transfer through the weld throat controls the design.

A smoother toe may be more important when fatigue initiates in the parent plate. Reduced weld volume may be preferable where distortion control dominates. A relocated attachment may outperform all three. The specification must follow the failure mechanism.

What OEMs Should Ask Before Adding Reinforcement

When a fatigue concern appears, the easiest CAD response is often to add material. A better engineering sequence begins with identifying the load path. Where does the force enter the component? Where are the highest stress ranges? Does the proposed reinforcement reduce those stresses or simply create a sharper stiffness transition nearby? Where will the reinforcement terminate? Will any new weld cross the principal tensile stress direction?

Could the attachment be moved toward a lower-stress region? Could the component geometry carry the load without introducing another welded attachment? Can the detail be manufactured repeatedly without excessive distortion? These questions change reinforcement from a material problem into a system problem. They also explain why the visually lightest design is not necessarily fragile, and why the visually heaviest design is not necessarily durable. Good fatigue design frequently looks deceptively simple because unnecessary attachments and abrupt transitions have been removed.

What Procurement Teams Should Ask Suppliers

Procurement teams do not need to perform a complete fatigue analysis themselves, but they should recognize when a supplier comparison is being reduced to misleading metrics. Two suppliers may quote the same steel grade and nominal weld size while producing very different structural details. One may control fit-up tightly while the other fills variable gaps with weld metal. One may place weld starts and stops in low-stress areas while the other places them beside an attachment termination.

One may control distortion through fixtures and welding sequence while the other relies on post-weld straightening. One may use a reinforcement geometry designed around the load path while the other simply adds plate thickness. The material specification can therefore be identical while long-term structural behavior differs. For fatigue-sensitive trailer components, sourcing should evaluate the interaction between drawing, process capability and inspection, not only material certificates and nominal weld dimensions.

For trailer jacks and mounting hardware and accessories, the installation interface should be part of the sourcing discussion. A component rating does not certify the receiving chassis, and a supplier should not independently relocate or extend structural welds without the responsible OEM’s approval.

Testing must match the fatigue question

Fatigue testing also requires careful interpretation. A static proof load can demonstrate that a structure survives a defined load without unacceptable permanent deformation or immediate failure. It does not establish long-term fatigue life. A tensile test can characterize material or weld properties. It does not reproduce millions of chassis load cycles. A good-looking weld macro-section may verify penetration and fusion at the sampled location. It does not prove that every production weld has the same toe geometry or residual stress state.

Even fatigue testing requires context. S-N curves are generated under specified loading conditions, and the result depends on detail geometry, stress definition, load spectrum and failure criterion. Fatigue guidance uses different stress-assessment approaches, including nominal, structural hot-spot and effective notch stress. A computed stress must be paired with the curve and definition appropriate to that approach; a raw finite-element peak cannot simply be substituted into an unrelated nominal-stress curve. [10]

A semi-trailer-specific study published in *Engineering Failure Analysis* similarly combined finite-element methods and physical testing to develop fatigue-life prediction for welded steel semi-trailer components, illustrating why real welded structures require more than a simple material-strength comparison. [11] Testing is valuable. But the test must measure the failure mechanism the designer actually cares about. A useful verification plan also identifies where cracks are sought, the acceptance criterion and how representative production specimens are selected. A carefully finished prototype may not represent the gaps, access conditions or repair practices of normal production. Test results should follow the released drawing and manufacturing revision, so later supplier changes can be assessed against the configuration actually validated.

The Real Design Target Is Smooth Stress Flow

A useful way to think about fatigue design is to imagine stress as a flow moving through the chassis. Good structural details allow that flow to change gradually. Poor details force it through sharp geometric and stiffness transitions. A smooth plate is easier. A hole disturbs the flow. A weld toe disturbs it again. A transverse attachment changes the load path. A thick reinforcement ending abruptly can create a strong stiffness gradient.

Intersecting welds and constrained details add further complexity. The designer cannot eliminate every stress concentration. The objective is to keep the most severe ones away from high cyclic stresses and to make the remaining details manufacturable with consistent quality. This is why eliminating a weld can sometimes be more valuable than enlarging it. It is why moving an attachment can outperform strengthening the attachment. It is why gradual transitions can outperform abrupt reinforcement.

And it is why fatigue durability often comes from geometry that does not look especially dramatic.

GOODIN view: manage the detail, not the volume of weld metal

Trailer structures need welding. They also need reinforcement, attachments and gussets in many locations. The engineering mistake is therefore not using welds. It is assuming that structural durability increases in proportion to the amount of weld metal or reinforcement added. For a trailer operating under millions of irregular load cycles, the critical question is often not whether the weld itself can carry a large static force.

It is whether that weld creates a fatigue-sensitive detail in the surrounding structure. That distinction should influence design, manufacturing and sourcing simultaneously. Designers should manage load paths and stiffness transitions. Manufacturing engineers should control fit-up, heat input, distortion and weld geometry. Quality teams should inspect defects that matter to the actual failure mode. Procurement teams should specify the intended joint rather than ask generically for “more welding.”

Repair decisions should address the mechanism that created the crack instead of simply covering the damaged area with additional steel. And buyers should be cautious about judging structural quality by visual mass alone. GOODIN View: Structural durability is not created by maximizing weld metal. It is created by managing load paths, stiffness transitions and fatigue-sensitive details. The strongest-looking trailer is therefore not necessarily the trailer with the most reinforcement.

A better trailer is one in which every reinforcement has a reason, every weld has a load-path function and the production process can reproduce that detail consistently. That is the difference between adding material and engineering durability.

Sources & Further Reading

Manufacturer engineering guidance and primary technical research. Source examples illustrate mechanisms; the applicable material, drawing, assessment method and production conditions must be checked for each design.

1. SSAB — Trailer Design Guideline — Fatigue
2. SSAB — Trailer Design Guideline — Reinforcement plates
3. SSAB — Trailer Design Guideline — Landing gear attachment
4. SSAB — Trailer Design Guideline — Weld quality
5. SSAB — Trailer Design Guideline — Welding distortion
6. SSAB — Trailer Design Guideline — Welding heat input
7. TWI — Methods for Improving the Fatigue Strength of Welded Joints
8. TWI — Design — Part 1
9. S. J. Maddox / TWI — Fatigue design rules for welded structures
10. Welding in the World — New developments and guideline updates for HFMI treatment for improving the fatigue strength of welded joints
11. L. Tello et al. / Engineering Failure Analysis — Development of a fatigue life prediction methodology for welded steel semi-trailer components based on a new criterion
