6061-T6 After Welding Is Not the Same Material: Why Aluminum Trailer Components Fail Around the Weld

Engineering analysis—not a welding procedure, repair approval or component-specific design allowable.

A Welded Aluminum Joint Is Not One Material Condition

6061 belongs to the 6XXX family of aluminum alloys, whose primary alloying system includes magnesium and silicon. Those elements matter because they allow 6061 to be strengthened through heat treatment. In simplified terms, the material is first brought into a condition where strengthening elements are available in solid solution. Controlled aging then allows very small precipitates to form throughout the aluminum matrix. In 6061-T6, fine strengthening precipitates—commonly associated with the Al-Mg-Si precipitation sequence—impede dislocation movement.

That microscopic structure is one reason the alloy can combine relatively low density with useful structural strength. In other words, the strength of a 6061-T6 extrusion does not come only from “being aluminum” or “being 6061.” It also comes from how that 6061 was thermally processed before the trailer manufacturer received it. This is why welding matters so much. Research on the HAZ of welded 6061 links hardness loss to dissolution and coarsening of strengthening precipitates. The exact balance depends on the local thermal history, rather than on the alloy designation alone. [2]

The material has not disappeared. The chemistry has not suddenly become unsuitable. But its local microstructure—and therefore its local mechanical behavior—has changed. That is the first principle that trailer designers need to carry into an aluminum weldment:

Temper is a material condition, not a permanent label.

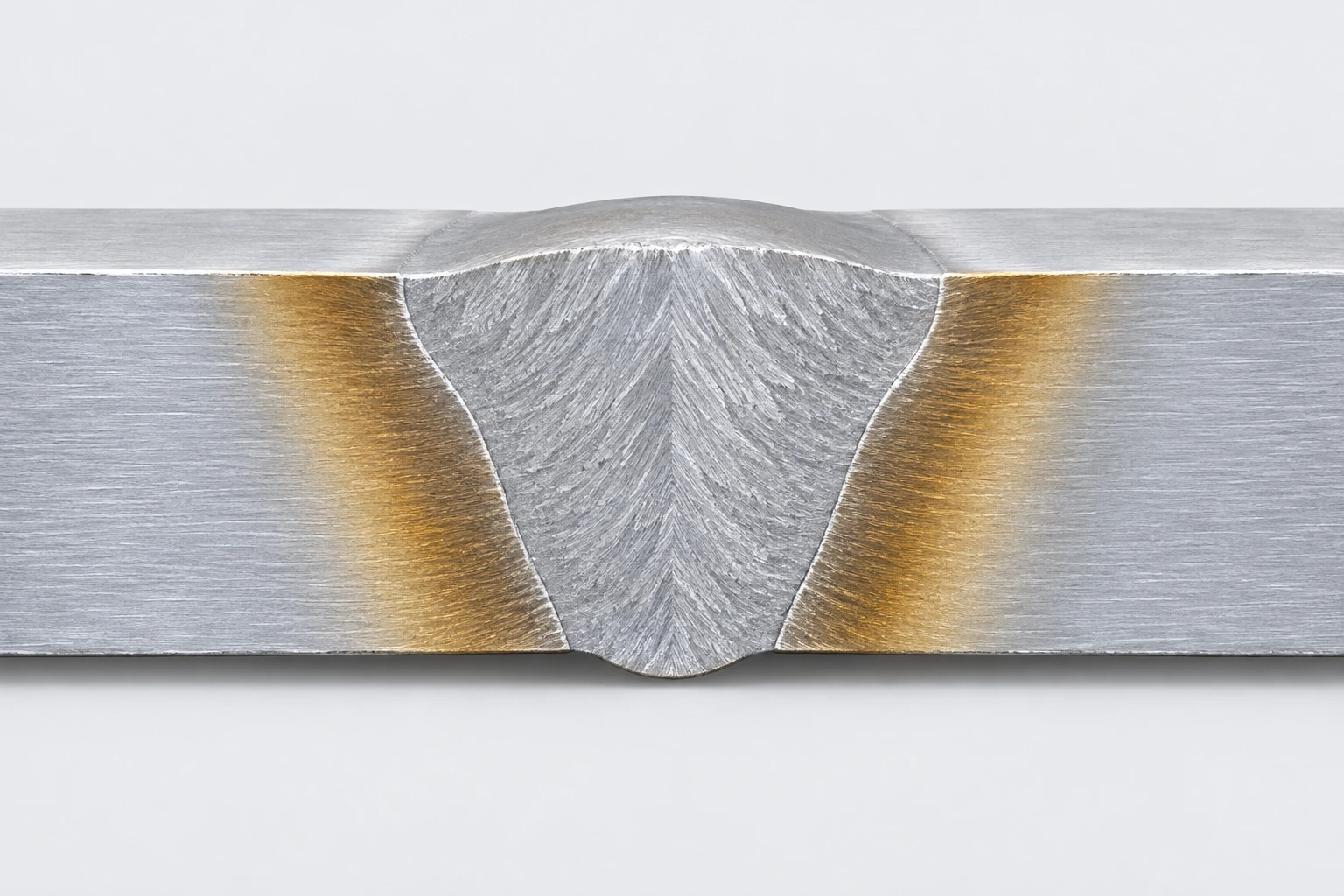

The spatial gradient across the joint

Look at a finished aluminum weld and it is tempting to treat the entire area as one connection. Metallurgically, it is not. A fusion-welded 6061-T6 structure contains several different regions. At the center is the weld metal, where the original material has melted, mixed with filler metal and solidified. Immediately outside that lies material that did not melt but experienced very high temperatures. Farther away, additional regions experienced progressively lower peak temperatures. Eventually the thermal effect becomes small enough that the extrusion essentially retains its original T6 properties.

The result is a property gradient:

unaffected T6 base metal → thermally altered HAZ → fusion boundary → weld metal → HAZ → unaffected T6 base metal.

Those regions can have different hardness, yield behavior, tensile behavior, residual stresses and microstructures. This is why asking whether “a 6061 weld is strong enough” is incomplete. Which part of the weldment is controlling? The weld metal? The fusion line? The softened HAZ? The weld toe? The surrounding extrusion geometry? The answer changes from one joint to another.

Where the softened base material governs, increasing weld-metal strength does not by itself eliminate that controlling region. Filler selection must therefore be related to the complete joint, not treated as a substitute for evaluating the HAZ. [1] [3] This is the aluminum equivalent of a broader engineering rule:

The strongest individual material in a joint does not necessarily determine the strength of the joint.

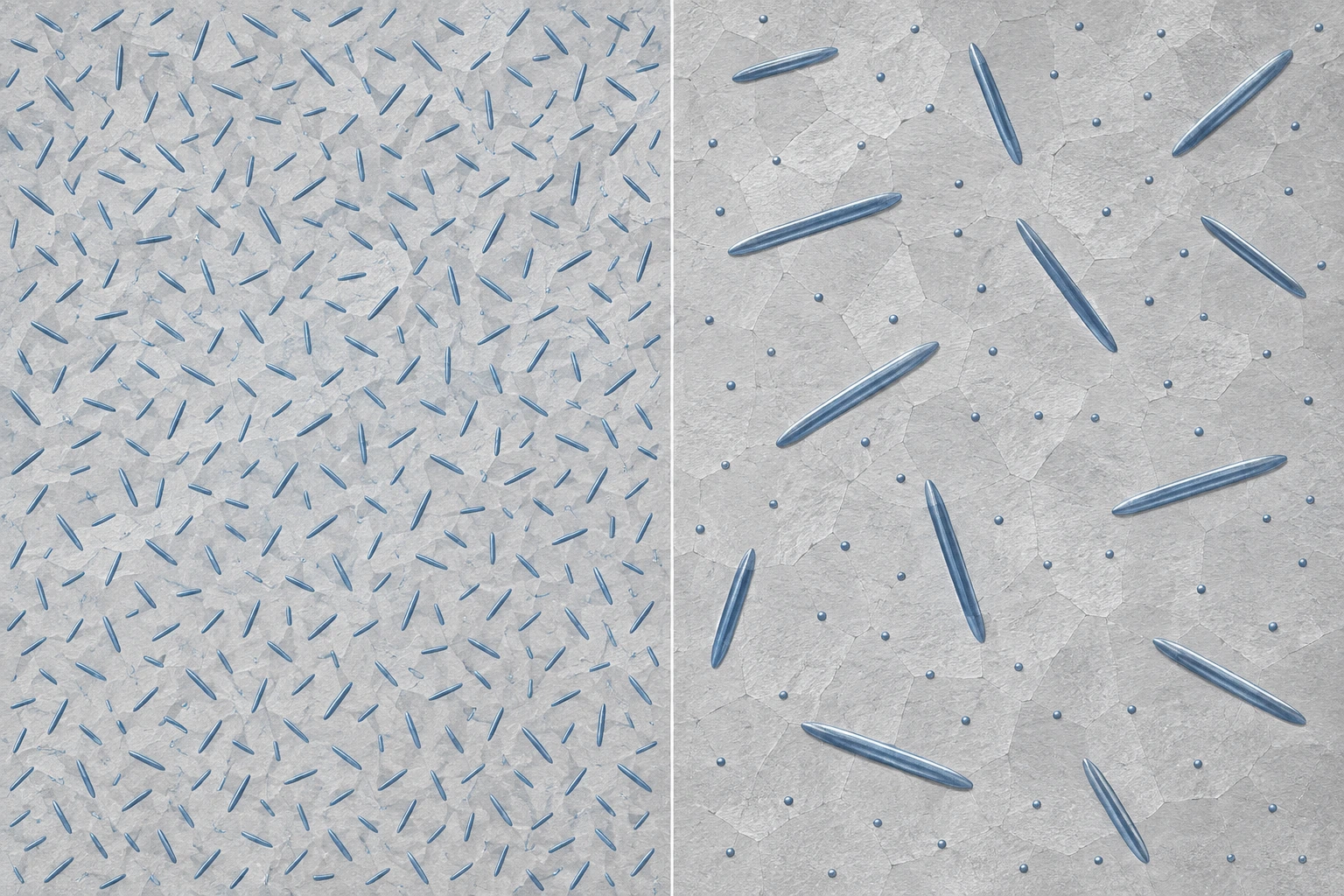

What Welding Heat Actually Does to 6061-T6

The phrase “heat weakens aluminum” is too crude to be useful. Temperature affects different parts of the joint differently. Very close to the arc, material melts. Outside the fusion zone, the base metal sees a thermal cycle whose peak temperature declines with distance from the weld. Some portions of the HAZ can experience temperatures high enough to dissolve strengthening precipitates. Other portions remain below that level but stay hot enough for long enough to coarsen the finely distributed precipitates responsible for the T6 strength.

Coarser precipitates are generally less effective obstacles to dislocation motion. This is the origin of the “over-aging” language commonly used when discussing welded 6XXX alloys. The microscopic strengthening system that the aluminum producer carefully established has been locally changed by fabrication. Laboratory measurements often reveal this as a hardness valley across the welded joint.

Published research describes this relationship between the weld thermal cycle, precipitate changes and local hardness. A hardness profile is evidence of a spatially varying material state; it is not automatically a design-strength map or a prediction of component fatigue life. [2] The key manufacturing consequence is straightforward:

The welding process does not merely join two pieces of 6061-T6. It creates a new local distribution of material properties.

A designer who models the entire welded component using only the original extrusion properties can therefore be modeling a structure that no longer exists after fabrication.

A percentage reduction is not a universal design rule

A percentage reduction can be a useful warning, but it is not a universal equation. This article does not prescribe a blanket 30–40% reduction for welded 6061-T6. The relevant property and test condition must be identified before a number is useful.

HAZ strength depends on variables including material product form, starting temper, section thickness, welding process, travel speed, current, heat input, joint geometry, number of passes, preheat, interpass temperature and the exact property being measured. Yield strength, ultimate tensile strength and hardness do not necessarily decline by the same proportion.

The design method must distinguish unaffected base material, heat-affected material and weld metal, using the applicable product form, temper and welded-condition provisions. Do not confuse a typical coupon result with a minimum specified property or an allowable design stress. Engineering design should use the properties appropriate to the actual welded condition and applicable design method—not simply subtract 35% from every number on a material certificate. The broader judgment remains valid even when the exact percentage changes:

6061-T6 before welding and the heat-affected region after welding should not be treated as mechanically identical.

Why Cracks Can Appear Beside an Intact Weld

One of the most confusing aluminum failures occurs when the weld bead still looks intact. The crack appears next to it. At first glance, that seems to prove that the weld was “stronger than the aluminum.” That conclusion can be partly true, but it does not explain the mechanism. Consider what has happened locally. The untouched extrusion retains relatively high T6 strength. The weld metal has properties determined by its filler chemistry, dilution, solidification and welding procedure. Between them is a thermally softened region.

Now add the geometry of the connection. A fillet weld introduces a weld toe. A bracket introduces a stiffness change. A tube-to-plate connection transfers force from one shape into another. A trailer chassis cycles through bending and torsional loads repeatedly during service. The local region therefore contains both a material-property transition and a geometric stress concentration. Those effects can interact. The HAZ may deform more readily because its yield strength has been reduced.

The weld toe or attachment termination may increase local stress. Repeated road loading then cycles that local region again and again. The eventual crack can appear adjacent to an apparently intact bead. This is why the visual statement—

“The weld didn't break, so the weld was good.”

—is not a complete engineering diagnosis. The joint must be treated as a system.

HAZ Softening and Fatigue Are Two Different Problems That Can Reinforce Each Other

Static HAZ weakening should not be confused with fatigue. They are related but different mechanisms. HAZ softening describes how welding heat changes the local material condition and mechanical properties. Fatigue describes progressive damage caused by repeated cyclic stress. A trailer provides exactly the environment in which those two issues can interact. The chassis flexes. Suspension loads enter and leave the structure. The trailer twists across uneven surfaces. Braking and acceleration modify longitudinal forces.

Cargo changes the load spectrum. Attachments vibrate. An aluminum component may therefore experience thousands or millions of cycles without ever approaching its one-time static failure load. A welded detail can become especially sensitive when the high-stress region overlaps the softened HAZ.

The presence of a softened zone does not, by itself, quantify fatigue performance. Cyclic stress range, weld detail, imperfections, residual stresses and the load spectrum all remain relevant. A static strength reduction cannot simply be reused as a fatigue-life reduction. But here again, it would be incorrect to claim that every fatigue crack must initiate in the HAZ. Porosity, lack of fusion, crater cracks, poor weld profile, attachment geometry, misalignment and other local stress concentrations may control first.

The design question should therefore not be:

Is the HAZ weaker?

It usually is in welded precipitation-hardened 6061-T6. The more useful question is:

Does the joint design place that weakened region where the trailer also creates high cyclic stress?

That is what determines whether metallurgical softening becomes an actual service-life problem.

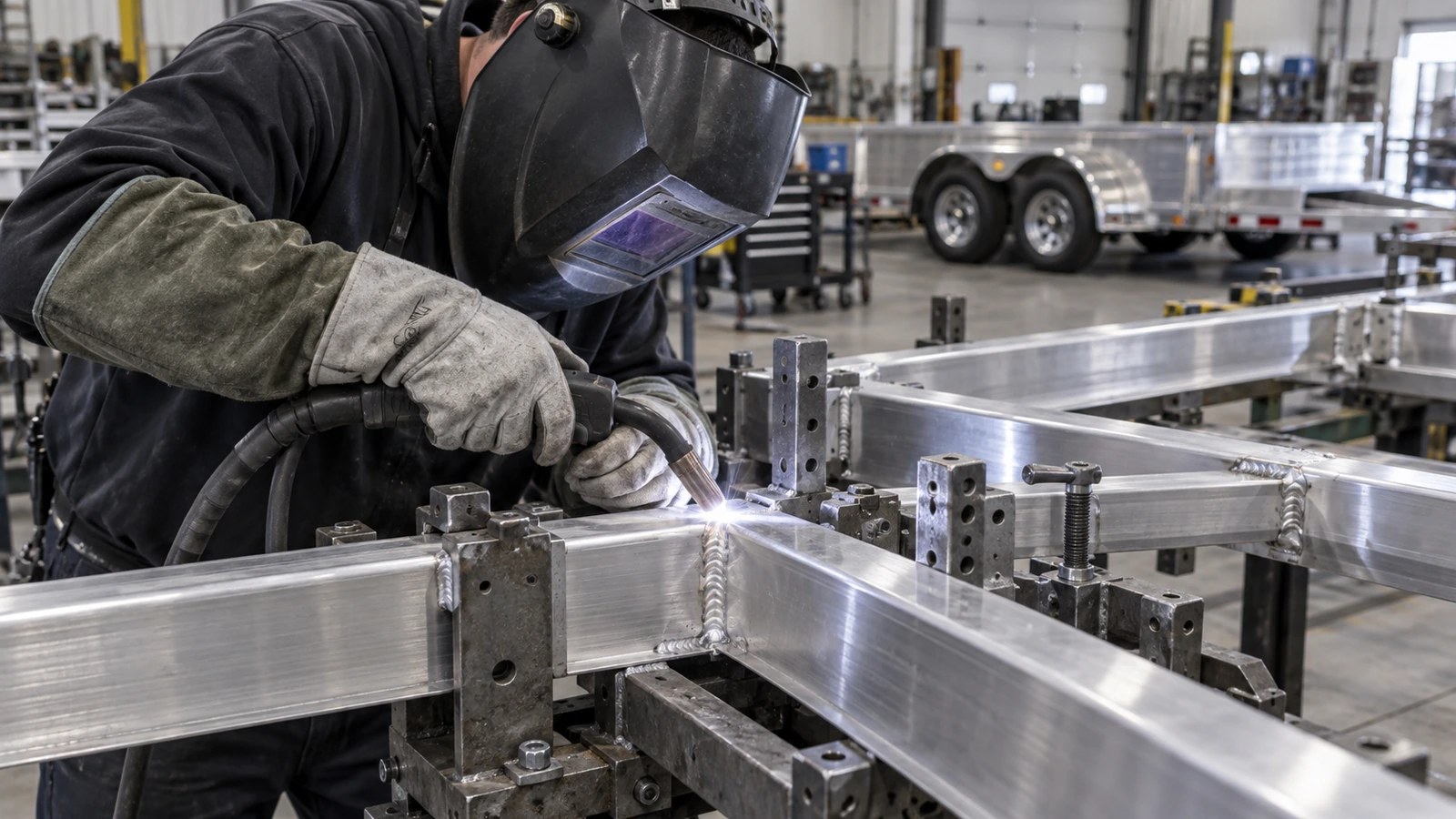

Heat Input and Repeatable Production

For a production welder, current, voltage and travel speed can look like process settings. For the structural engineer, they also influence the final material condition. A slow, high-heat welding procedure can expose more surrounding material to elevated temperature. The HAZ may become wider. Distortion may increase. Thin sections may burn through. The precipitate structure can experience more extensive thermal alteration.

Hobart's trailer guidance emphasizes controlled heat input, preparation and consistent travel. Pulsed GMAW can support that process control, but selecting a pulsed machine is not itself proof of the required weldment properties. [4] But “use less heat” is also too simplistic. Insufficient energy or excessive travel speed can create poor fusion. A cold-looking process that preserves more of the surrounding temper but fails to produce the intended joint is not an improvement. The real manufacturing objective is:

Use enough energy to create the required fusion and weld geometry, while avoiding unnecessary thermal exposure of the surrounding structure.

That is a process window, not a single maximum or minimum number. It also means that welding procedure consistency matters. If one operator produces the intended joint at the specified travel speed while another moves much more slowly, the two components may contain nominally identical welds but different thermal histories. Their beads may even look similar. The HAZ may not be.

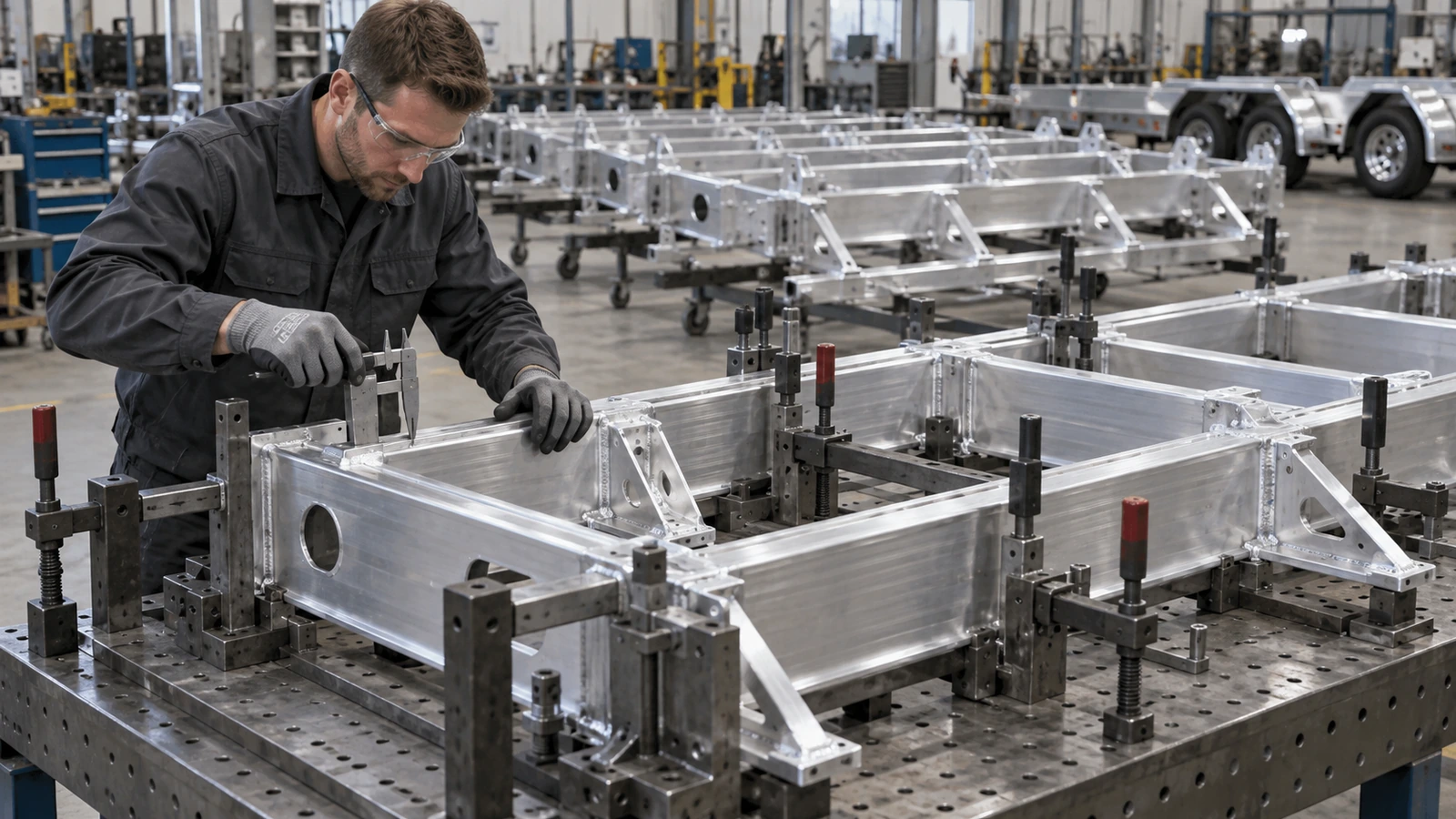

This Is Why Production Repeatability Matters

A prototype trailer component may be welded by an experienced technician under carefully controlled conditions. Production introduces variation. Extrusion dimensions vary within tolerance. Cut length changes slightly. Fixture condition changes. Joint gaps change. Operators have different travel speeds. Torch angle varies. Parts may begin the weld at different temperatures. Rework can add additional thermal cycles. If a poor fit-up creates a large gap, the operator may deposit more filler metal and spend longer in the joint.

That changes heat input. If an unacceptable weld is ground out and rewelded, the surrounding extrusion experiences another heating cycle. If the joint requires several passes where the original process expected one, the thermal history changes again. The drawing may still say:

6061-T6.

But the manufactured joint is the outcome of:

6061-T6 + geometry + fit-up + filler + welding procedure + heat input + rework history.

This is why production consistency becomes part of structural performance. In high-volume trailer manufacturing, a weld procedure is not merely a method for making acceptable-looking beads. It is a method for reproducing an intended metallurgical and structural condition hundreds or thousands of times.

The Oxide Layer Creates Another Manufacturing Constraint

Aluminum also arrives at the welding station with a natural oxide layer. That oxide is protective in normal atmospheric service, which is one reason aluminum performs well in many corrosion environments. During welding, however, it becomes a process problem.

Hobart notes that aluminum oxide melts at a substantially higher temperature than the underlying aluminum. Oil, grease, moisture and oxide contamination can therefore contribute to poor fusion and porosity unless the joint is properly prepared. This creates another interaction between manufacturing and durability. A production team trying to solve fusion problems by simply adding more heat may widen the thermal effect on the 6061-T6. The better response may be improved preparation, more consistent fit-up, better shielding, appropriate filler feeding or a more suitable process window.

In other words:

poor preparation → unstable weld quality → operator adds heat → larger thermal exposure → greater HAZ alteration

is a plausible production failure chain. Heat is not always the root problem. Sometimes it is the shop-floor response to another process problem. [4]

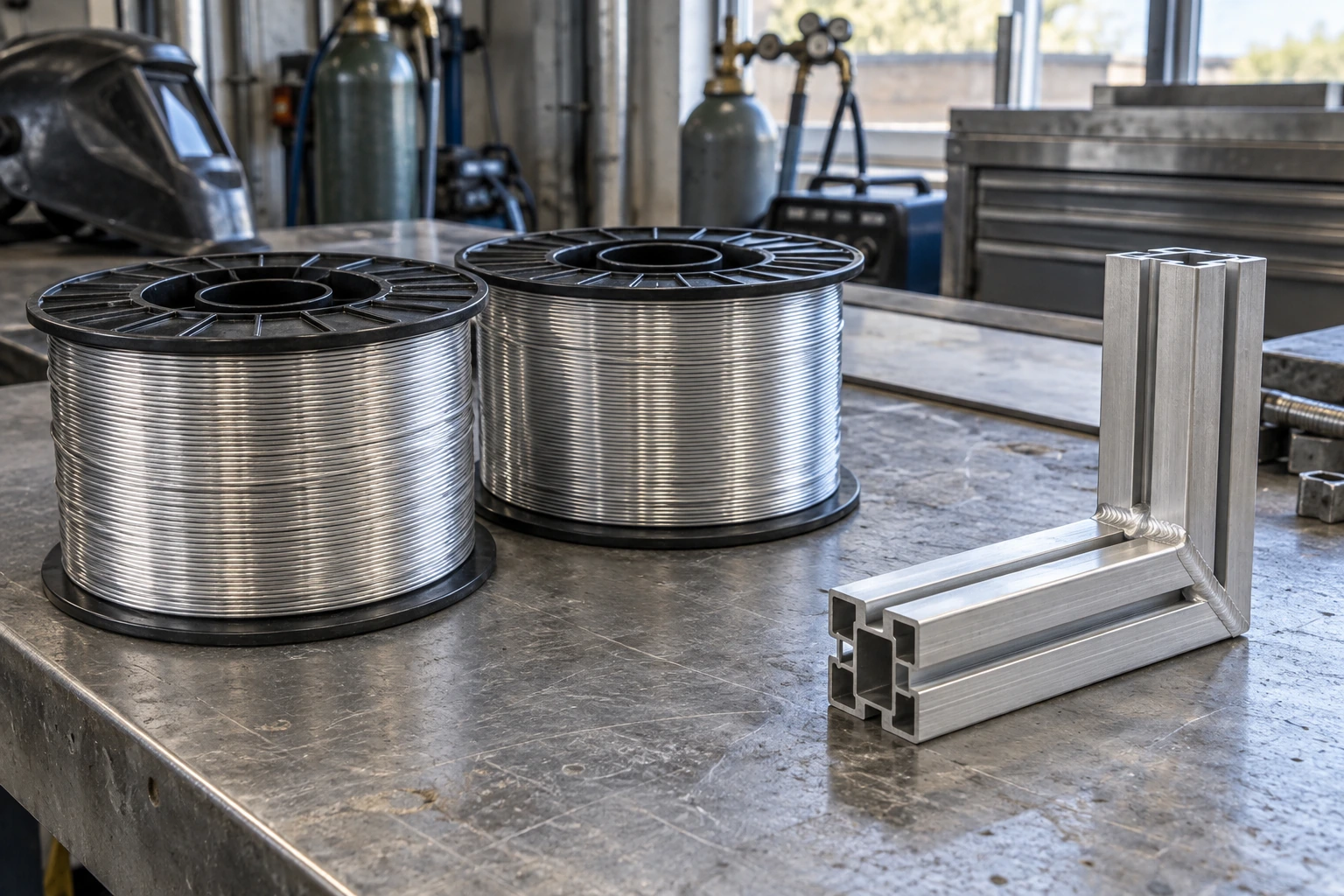

4043 vs 5356: Choose for the Joint, Not the Label

Filler-metal discussions frequently collapse into a simple contest:

4043 or 5356—which is stronger?

That is exactly the kind of comparison that Materials & Manufacturing should avoid. The correct filler depends on what the finished component needs to do. ESAB and Hobart treat filler selection as an application decision: joint strength, ductility, cracking, environment, sustained temperature, anodizing and subsequent heat treatment can change the choice. [3] [5]

5356 can offer advantages in shear strength, ductility and anodized color matching; 4043 offers fluidity and resistance to certain solidification-cracking problems. These are selection considerations, not a universal ranking of finished-component strength or fatigue life. The choice cannot therefore be reduced to nominal filler tensile strength. There is an even more important point for 6061-T6 trailer structures:

Selecting a higher-strength filler does not automatically restore the strength lost in the HAZ.

Where the HAZ governs, changing filler does not restore the original precipitate distribution in the surrounding base metal. That changes the engineering question. Instead of asking:

Which filler has the largest strength number?

ask:

Which filler produces the required weld performance with this base-alloy combination, joint design, loading, environment, manufacturing process and service temperature?

That is a sourcing decision.

6XXX Aluminum Also Has Its Own Cracking Problem

The heat-affected zone is not the only metallurgical issue. 6XXX alloys can also be susceptible to solidification cracking if the weld metal chemistry falls into an unfavorable range.

Hobart explains that Al-Mg-Si 6XXX alloys sit in a composition range that can be crack-sensitive when welded without appropriate filler addition. Adding a suitable 4XXX or 5XXX filler shifts weld-metal chemistry away from the most crack-sensitive condition. This is why an apparently simple idea such as melting two thin 6061 edges together without filler can be poor practice for some joints. The filler is doing more than filling space. It modifies the chemistry of the solidifying weld. Joint geometry also matters because it controls how much filler can enter the weld and how much base-metal dilution occurs.

Therefore:

base alloy → filler chemistry → dilution → solidification behavior → crack sensitivity

is another causal chain that the specification must consider. Again, the process cannot be reduced to “6061 is weldable.” It is weldable when the joint, filler and procedure are compatible with the alloy's metallurgy. [6]

Design for the As-Welded Condition

Suppose an engineer knows that a welded 6061-T6 HAZ will have lower strength. There are two possible responses. The first is to search for a filler that somehow restores everything. The second is to design the component around the as-welded condition. The second is usually the more powerful design strategy. If a welded bracket is located in the highest-stress region of an extrusion, HAZ softening becomes more important. If the same joint can be moved into a lower-stress zone, the reduced local material strength may no longer control the design.

If the section can be locally enlarged, stress can be reduced. If a load can be introduced more gradually, peak stress can fall. If an extrusion can integrate a feature that otherwise required a welded attachment, a fatigue-sensitive welded detail may disappear completely. This is Design for Manufacturing at the structural level. It recognizes that the engineer should not design an ideal unwelded aluminum part and then ask production to join it somehow. The manufacturing process must be part of the structural design from the beginning.

That principle becomes especially important for trailer components because extrusion allows manufacturers to create relatively sophisticated cross-sections. Geometry can sometimes perform reinforcement or attachment functions that would otherwise require additional welding. The question then becomes not:

How do we weld this stronger?

but:

Can the load path or extrusion geometry reduce how much welding is needed in the most highly stressed region?

That is often a better engineering question.

Post-Weld Heat Treatment Is Possible—but It Changes the Manufacturing Problem

If welding damages the original T6 condition, an obvious question follows: Why not simply heat treat the entire component back to T6 after welding? In some applications, that can be done. But it is not automatically practical for trailer structures. Returning a welded 6061 component toward a T6 condition can require an appropriate post-weld solution treatment and aging sequence. That introduces manufacturing requirements for furnace capacity, temperature uniformity, quenching, distortion control and dimensional recovery.

A large welded assembly may move during treatment. Thin sections may distort. Different components may respond differently. The filler alloy must also be compatible with the intended post-weld heat treatment.

ESAB identifies 4643 as an option to evaluate for suitable 6061 weldments that will receive solution treatment and artificial aging. It also warns that filler response cannot be assumed from base-metal response: 5356 is not a heat-treatable filler, and 4043's response depends on dilution. [3]

Natural aging after welding may alter some local properties. It must not be assumed to recreate the original, uniform T6 condition. A routine coating bake is not equivalent to a qualified solution-treatment, quench and aging process. So post-weld heat treatment is not a free correction. It creates a different process chain. For many trailer components, designing appropriately for the as-welded condition can be more economical and repeatable than welding an optimized T6 structure and then attempting to recreate the original temper afterward.

Repair and Inspection: Find the Failure Mechanism

The same issue appears outside engineering offices.

Consider a cracked aluminum trailer floor or support that cannot practically be heat treated as a complete assembly. Closing the visible crack would introduce another local thermal cycle. That is an engineering question, not merely a question of access for the welding torch. It does not automatically mean the repair is impossible. It means a repair cannot be evaluated only by asking whether a welder can physically close the crack. The repair changes the material condition surrounding the crack. It can also add residual stress, change geometry and place another weld into an area that has already demonstrated high local stress.

A repair therefore needs to answer: What caused the original crack? What alloy and temper are actually present? Is the affected component structural? Where is the load path? Will the repair create another weakened HAZ? Does additional reinforcement reduce stress or simply relocate it? Those questions matter far more than whether the new bead looks attractive.

The Horse-Trailer Floor Debate Shows the Limits of Visual Weld Inspection

A buyer examining photographs of a replacement aluminum trailer floor may receive conflicting opinions about the welds. A photograph does not establish alloy identity, joint loading, welding procedure or fatigue life. It is a screening aid, not a controlled failure investigation. Surface appearance can reveal genuine quality concerns. Visible holes, severe contamination, cracks, underfill or obviously incomplete fusion should not be dismissed. But a visually beautiful weld does not prove that the HAZ retained T6 properties.

Nor does a dark or imperfect-looking bead by itself reveal the fatigue life of the component. Structural quality requires understanding what is happening beneath and beside the bead, not merely judging the bead itself.

Why Repairing a Crack With “More Aluminum” May Not Solve the Problem

Suppose a trailer support cracks next to a weld. One common repair strategy is: grind the crack, reweld it, add a gusset, and increase weld length. That may work. It may also reproduce the original failure mechanism. If the component originally cracked because the weld sat inside a high cyclic stress region, another weld returns heat to the same area. A larger gusset changes stiffness. The end of the gusset creates a new transition. Additional welding creates another HAZ. The original weak location may simply move.

Field debates about extra side welds, larger gussets or bolted joints cannot establish the correct structural repair without the component's load path, condition and design requirements. These are alternatives requiring evaluation, not instructions to follow on a damaged trailer.

More weld, more gusset and more aluminum are not failure mechanisms.

They are proposed solutions. Before choosing one, the failure mechanism must be identified. That principle applies equally to original manufacturing.

What OEMs Should Specify and Validate

Material traceability still matters. An OEM should know whether it received the specified 6061 alloy and specified temper. But the extrusion certificate answers only one stage of the manufacturing chain. It can confirm the condition before welding. It cannot confirm the mechanical properties of every HAZ after production welding. Those depend on what happened later. This is an important sourcing distinction. A procurement department may require:

6061-T6 extrusion, mill certificate required.

That proves the incoming material specification. It does not prove:

6061-T6 mechanical properties everywhere in the completed welded component.

For a fatigue-sensitive structural part, the procurement specification may also need to control joint design, filler selection, welding procedure, fit-up, preparation, heat input, allowable rework and inspection. Material compliance and process compliance are two different things. Both affect the product.

For Trailer OEMs: Design the Weld Before Choosing the Extrusion

When an OEM selects 6061-T6 because of its attractive strength-to-weight ratio, the next question should not be postponed until production engineering. Where will it be welded? The answer can change the value of the material choice. An extrusion may provide excellent unwelded strength throughout most of its length. That strength can still be extremely valuable even if small welded regions have reduced properties. This is the design opportunity: regions requiring the highest base-metal strength do not necessarily have to coincide with the most severe welded details.

That suggests a better design strategy: keep highly stressed regions as free as practical from severe welded details; move connections into lower-stress regions where possible; size sections using appropriate as-welded properties where the HAZ controls; design joints for reliable filler addition and repeatable access; minimize unnecessary thermal cycles; and use extrusion geometry to reduce avoidable welded attachments. The goal is not to avoid welding aluminum. The goal is to decide where welding is structurally affordable.

For Procurement Teams: “6061-T6 + 5356” Is Not a Complete Specification

A supplier quote may state: Material: 6061-T6 Filler: 5356 Process: MIG That sounds specific. For a fatigue-sensitive trailer component, it may still be incomplete.

The drawing and purchasing specification may also need to define the intended weld location and geometry, applicable welding standard, filler requirements, preparation, joint gap, weld size, number of passes, qualified process, relevant heat-input controls, inspection criteria and permitted repair procedures. If post-weld heat treatment is required, that must be specified as part of the process route rather than assumed. If anodizing, elevated temperature, corrosion exposure or dynamic loading changes filler requirements, those service conditions should be communicated before the supplier chooses consumables.

Procurement should also distinguish between incoming material documentation and final process assurance. A 6061-T6 certificate verifies what entered the factory. A controlled welding process helps determine what leaves it. The sourcing requirement therefore evolves from:

Buy the correct alloy.

to:

Buy the correct alloy and control how manufacturing changes it.

That is a much more useful B2B specification.

For Quality Teams: Test the Failure Mechanism You Actually Care About

Testing welded aluminum also requires boundaries. A tensile test can demonstrate how a particular welded coupon behaves under monotonic tension. It can reveal whether fracture occurs in the weld metal, HAZ or base material. It cannot by itself predict the life of a trailer bracket under years of variable-amplitude vibration. A hardness traverse can reveal local softening. It is extremely useful for mapping the thermal effect. But hardness alone does not reproduce the actual load path of a chassis component.

A static proof load can verify that the assembly survives a defined load. It cannot demonstrate unlimited fatigue resistance. A macro-section can evaluate penetration, fusion and internal geometry at the section inspected. It cannot prove that every meter of production weld has identical quality. And one laboratory percentage reduction should never be treated as the universal property of every welded 6061-T6 component.

HAZ reduction must be assessed for the actual process, specimen, geometry and evaluation method. Results should be traceable to a defined manufacturing condition; an isolated laboratory percentage does not certify a production family. This variation is not evidence that the HAZ issue is uncertain. It is evidence that the result belongs to the complete manufacturing condition, not to the alloy name alone.

Define a release condition, not just a purchase description

A useful OEM specification identifies the drawing revision, the required material product form, the weldment's delivery condition and the validation evidence needed for release. Those items serve different purposes. Incoming alloy and temper records establish the starting point; procedure records establish the intended route; inspection and testing address whether the finished product meets the agreed criteria.

Changes should have an owner. Substituting filler, moving a weld termination, adding a pass to bridge a recurring gap or altering a repair sequence can change more than purchasing cost. The change-control process should decide when engineering review, procedure requalification or additional component testing is needed. That decision belongs to the applicable standard and product requirements, not to a blanket rule in a web article.

Sampling also needs a rationale. A coupon made from a convenient flat plate may not reproduce the restraint, access, thickness transition or repeated heating of an actual extrusion assembly. Representative testing does not always require testing every product destructively, but it does require a defensible connection between the evidence and the part being released.

Suppliers should state limitations openly. If a strength claim applies only to an unwelded extrusion, say so. If a validation report covers one weld location, one fixture and one loading direction, do not silently extend it to a redesigned bracket family. An auditable scope is more useful than an impressive strength number detached from its manufacturing context.

GOODIN View: Buy the Material and Its Manufacturing History

A buyer comparing two aluminum components may focus on material grade. 6061-T6 appears stronger than a lower-strength alternative. That matters. But once the component is welded, the design may be governed by a local condition that is not visible in the headline material specification. That is why an apparently premium material can still produce an inadequate component. It is also why a carefully designed component can use welded 6061-T6 successfully for decades. The material is not the problem.

The misunderstanding is treating the material specification as if it remains spatially uniform after manufacturing. It does not. A real welded component contains material history. The extrusion mill created one thermal history. The welding station creates another. Service loading adds mechanical history. Repair can add another thermal cycle years later. Durability emerges from all of them.

GOODIN View: Design Around the As-Welded Material

6061-T6 remains one of the most useful structural aluminum alloys for trailer components. Its combination of extrudability, strength, weight and corrosion performance gives designers options that would be difficult to achieve with many other materials. But those benefits do not eliminate the consequences of welding. The mistake is not choosing 6061-T6. The mistake is designing the welded structure as though every millimeter of the finished component still possesses the same properties shown on the original extrusion certificate.

The weld metal matters. Filler choice matters. Cleaning matters. Heat input matters. But the surrounding HAZ matters too. In many 6XXX trailer weldments, it can be the region that controls the joint. That should influence where welds are placed, how sections are sized, how heat input is controlled, how repairs are performed, how suppliers are qualified and what procurement specifications actually require. A higher-strength filler cannot automatically compensate for an unfavorable load path. A beautiful weld cannot restore precipitates destroyed or coarsened by heat.

A material certificate cannot describe the entire finished weldment. And choosing 6061-T6 does not eliminate the need to understand what happens to T6 during manufacturing.

GOODIN View: The designer must design around the as-welded material—not around the strength printed on the original extrusion certificate.

That principle reaches beyond aluminum welding. It captures one of the most important ideas in trailer manufacturing:

Material properties do not act independently of manufacturing. Manufacturing changes the material that the product ultimately has to rely on.

The same interface discipline applies when selecting trailer jacks and mounting hardware and accessories for a trailer platform: the surrounding structure and its attachment method must be evaluated together. Product selection alone does not approve a welded aluminum connection.
